Microchip Technology's SST39VF800A-70-4C-M1QE-T Flash Memory

The SST39VF800A-70-4C-M1QE-T is a high-performance CMOS Multi-Purpose Flash Plus (MPF+) memory manufactured by Microchip Technology. This device is specifically designed to deliver reliability and flexibility for a wide range of data storage needs, making it an ideal choice for applications in consumer electronics, networking, automotive, and industrial markets.

Key Features

• Memory Size: The SST39VF800A-70-4C-M1QE-T comes with a storage capacity of 8 Mbit (1M x 8-bit), providing ample space for firmware storage, parameter settings, and data logging.
• Access Time: With an access time of 70ns, this memory chip ensures quick read operations, which is crucial for applications requiring fast boot or real-time data retrieval.
• Interface: The device features a parallel interface, facilitating easy integration with microcontrollers and processors that support parallel memory connections.
• Operating Voltage: It operates within a voltage range of 2.7V to 3.6V, making it compatible with low-voltage systems and helping in power-sensitive designs.
• Temperature Range: Designed to withstand harsh conditions, it operates in an industrial temperature range of -40°C to +85°C.

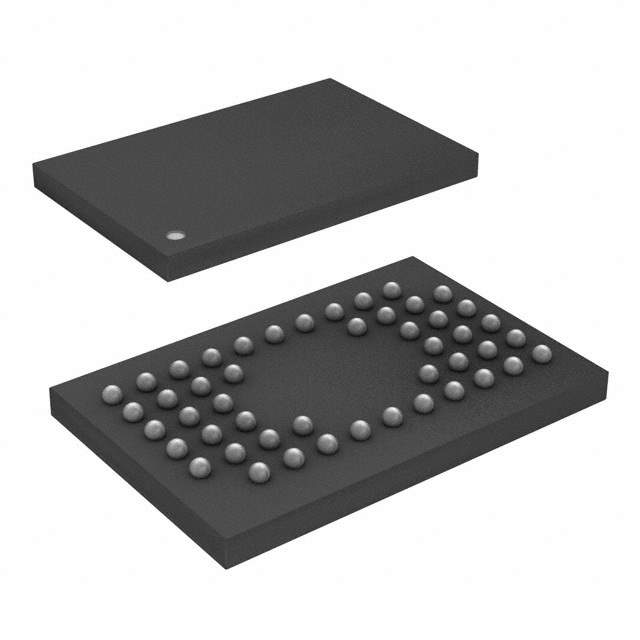

• Package: The SST39VF800A-70-4C-M1QE-T is available in a 48-LFBGA package, which is known for its small footprint and reliability in PCB mounting.
• Endurance: It offers high endurance with at least 100,000 erase and program cycles per block, ensuring long-term usability.
• Sector-Erase Capability: The memory is organized into uniform 4 KWord sectors for flexible data management and supports sector-erase and block-erase functions, enabling efficient memory utilization.

Applications

This flash memory chip is versatile and can be used in a variety of applications, including:

• Embedded systems for code and data storage
• Boot memory for computers and servers
• Consumer electronics such as digital cameras, smart TVs, and gaming consoles
• Networking equipment like routers and switches
• Automotive electronics for engine control units and infotainment systems
• Industrial control systems requiring robust data retention

Overall, the SST39VF800A-70-4C-M1QE-T by Microchip Technology is a reliable and flexible flash memory solution that offers the performance and features required for a multitude of advanced electronic applications.
