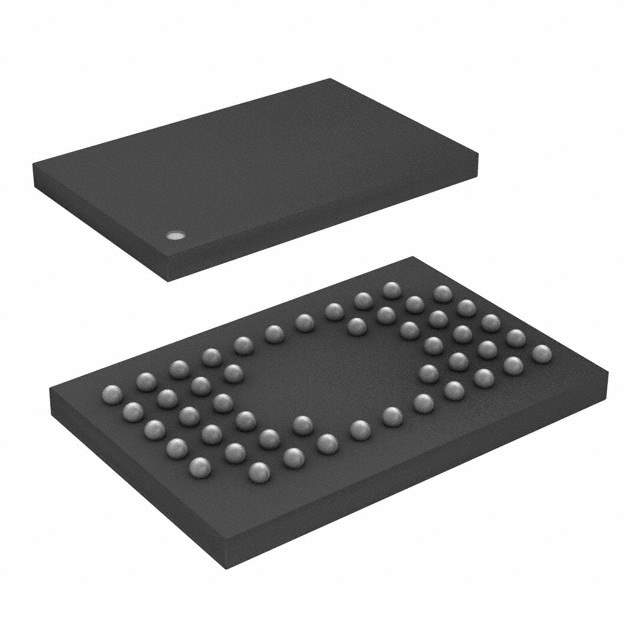

Microchip Technology's SST39VF200A-70-4I-M1QE-T Flash Memory

The SST39VF200A-70-4I-M1QE-T is a high-performance CMOS Multi-Purpose Flash Plus (MPF) memory manufactured by Microchip Technology. This device offers a storage capacity of 2 Mbit (256K x 8) and is designed to provide flexible and reliable non-volatile memory storage. With its superior reliability and low power consumption, it is an ideal choice for a wide range of applications including embedded systems, telecommunications, digital consumer electronics, and automotive electronics.

Key Features:

• Memory Organization: The device is organized as 256K x 8 bits, providing a total of 2 Mbit of memory storage.
• Performance: It operates with an access time of 70ns, ensuring high-speed read operations which is crucial for performance-critical applications.
• Operating Range: The memory chip features an industrial temperature range of -40°C to +85°C, making it suitable for use in harsh environments.
• Endurance: The SST39VF200A-70-4I-M1QE-T offers high endurance with at least 100,000 erase and program cycles per sector, ensuring a long operational lifespan.
• Low Power Consumption: It is designed for low power consumption, with typical standby and active currents of 5 μA and 10 mA respectively, which helps to extend battery life in portable devices.
• Single 3.3V Read and Write Operations: This simplifies power supply requirements and reduces system power consumption.
• Superior Reliability: With a data retention of at least 100 years, the device provides a reliable solution for data storage.

Programming and Erasure:

The device features sector-erase and block-erase capabilities, allowing for flexible memory management. It supports both byte-program and multi-byte program (up to 32 bytes) options, which enhances programming efficiency. Additionally, the SST39VF200A-70-4I-M1QE-T offers a software-controlled data protection mechanism to prevent accidental erasure or programming, which is critical for the integrity of the stored data.

Compatibility and Applications:

With its TSOP (Thin Small Outline Package) and PLCC (Plastic Leaded Chip Carrier) packaging options, the SST39VF200A-70-4I-M1QE-T is compatible with standard system designs and offers flexibility for PCB layout. It is widely used in a variety of applications such as digital cameras, MP3 players, modems, and other devices that require high-density, reliable flash memory.

Overall, the SST39VF200A-70-4I-M1QE-T from Microchip Technology stands out for its reliability, durability, and ease of integration, making it a top choice for designers and engineers looking for a dependable flash memory solution.
