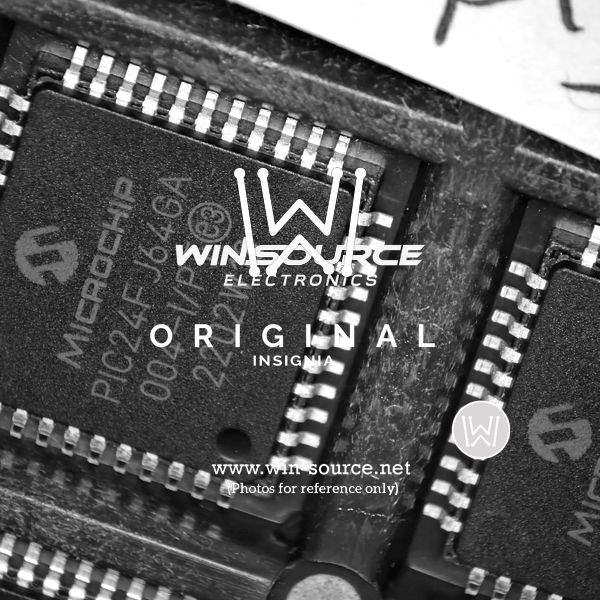

Microchip Technology PIC24FJ64GA004-I/PT Microcontroller

The PIC24FJ64GA004-I/PT is a high-performance microcontroller unit (MCU) from Microchip Technology, renowned for its versatility and efficiency in a wide range of embedded applications. This 16-bit MCU is part of the PIC24F family, which is well-suited for applications requiring sophisticated timing, control, and user interfaces.

Key Features:

• Core: The MCU features a 16-bit modified Harvard architecture that allows it to execute instructions efficiently, with a maximum speed of 16 MIPS at 32 MHz. This provides a balance between high performance and low power consumption.
• Memory: It comes with 64KB of Flash memory and 8KB of RAM, providing ample space for complex applications and data buffering.
• Peripherals: The device includes a variety of built-in peripherals, such as timers, input/output ports, a 10-bit Analog-to-Digital Converter (ADC), and multiple communication interfaces including UART, SPI, and I2C modules.
• Power Management: The PIC24FJ64GA004-I/PT supports multiple power modes, allowing designers to optimize power consumption for their specific application requirements.
• Packaging: This MCU is available in a 44-pin TQFP (Thin Quad Flat Package) that is ideal for space-constrained applications.
• Temperature Range: It operates over the industrial temperature range, making it suitable for harsh environments.

Applications:

The versatility of the PIC24FJ64GA004-I/PT makes it an ideal choice for a broad range of applications, including industrial control systems, automotive applications, medical devices, utility meters, and consumer electronics. Its robust set of features and peripherals enable developers to create complex and reliable systems with reduced development time and cost.

Development Support:

Microchip provides extensive support for the PIC24FJ64GA004-I/PT through its MPLAB® development environment, which includes software libraries, example code, and hardware development tools. This support helps accelerate the development process and brings products to market faster.

Conclusion:

With its combination of performance, memory, peripherals, and power efficiency, the Microchip Technology PIC24FJ64GA004-I/PT microcontroller is a powerful solution for designers looking to push the boundaries of what's possible in embedded systems design.
