The PD69208T4ILQ-TR is a state-of-the-art Power over Ethernet (PoE) controller designed and manufactured by Microchip Technology. This innovative solution is engineered to facilitate the delivery of power alongside data over Ethernet cables, which is a critical feature for modern networked devices such as IP cameras, wireless access points, and VoIP phones.

Key Features

• IEEE 802.3at Compliance: The device adheres to the IEEE 802.3at standard for PoE, ensuring compatibility with the latest PoE+ devices that require higher power levels up to 30 Watts per port.
• Quad-Port Capability: With four integrated ports, the PD69208T4ILQ-TR can simultaneously manage and supply power to multiple devices, making it an efficient solution for networking equipment.
• Advanced Power Management: The controller includes sophisticated power management features that allow for optimal power allocation and prioritization across connected devices.
• Energy-Efficient Operation: The PD69208T4ILQ-TR is designed to minimize power loss, which contributes to reduced energy costs and a lower environmental impact.
• Robust Protection Circuits: Built-in protection mechanisms safeguard against overcurrent, overvoltage, undercurrent, and thermal events, ensuring reliable operation and extending the lifespan of both the controller and connected devices.

Applications

The PD69208T4ILQ-TR is suitable for a wide range of applications in network infrastructure. It is particularly useful in environments where AC power is either unavailable or difficult to install. Common applications include:

• Enterprise networking for VoIP phones, wireless access points, and IP surveillance cameras.
• Industrial networking for sensors and control systems.
• Remote networking installations where power sourcing is a challenge.

Package and Availability

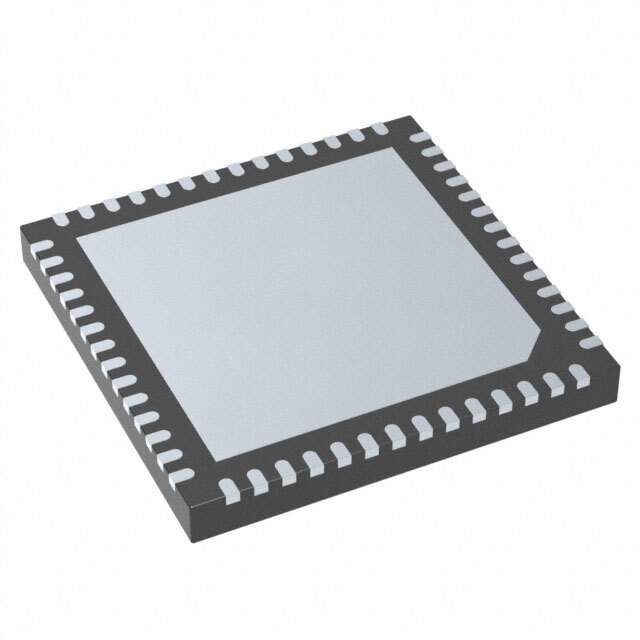

The PD69208T4ILQ-TR comes in a compact QFN package, which is ideal for space-constrained applications. The product is available in tape and reel packaging, simplifying the integration into automated manufacturing processes. As a part of Microchip Technology's renowned product lineup, customers can expect reliable performance and comprehensive technical support.
