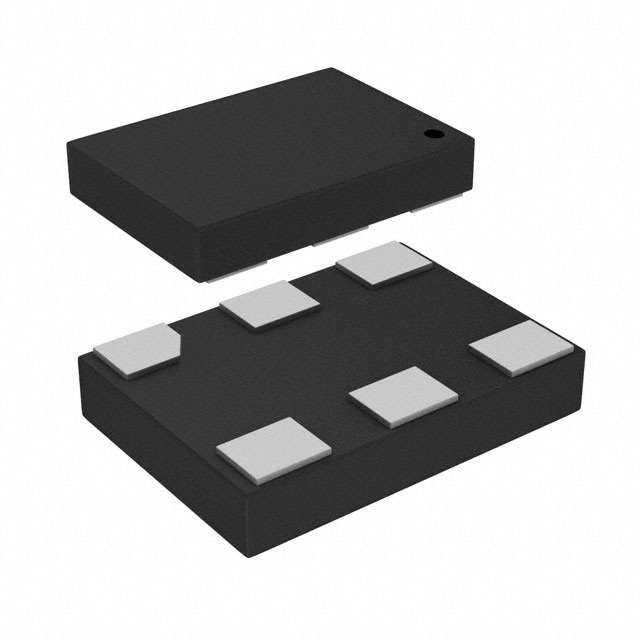

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Crystals, Oscillators, ResonatorsOscillators
Mfr Microchip Technology
Series MX57
Packaging Tube
Part Status Active
Base Resonator Crystal
Type XO (Standard)
Frequency 322.265625 MHz
Function Enable/Disable
Output HCSL
Voltage - Supply 2.375V ~ 3.63V
Frequency Stability ±50ppm
Operating Temperature -40°C ~ 85°C
Current - Supply (Max) 95mA
Mounting Type Surface Mount
Package / Case 6-SMD, No Lead
Size / Dimension 0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max) 0.055" (1.40mm)
Base Product Number MX574BBD322M265
Ultra Librarian 3D Model Ultra Librarian MX574BBD322M265 CAD Model
