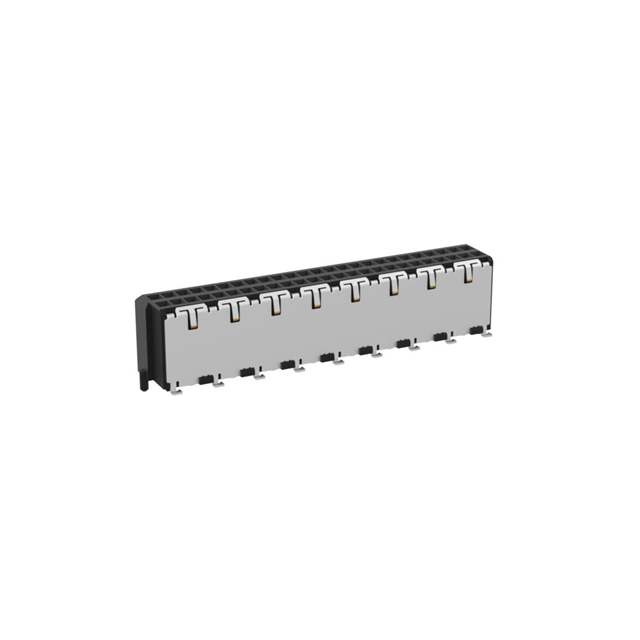

224512-E TE Connectivity Erni
Same model may have multiple batches, images only for reference.

224512-E

Part No 224512-E
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description MICROSPD F 6MM SMT 50POS
Datasheet
224512-E Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1310308-224512-E
Category Connectors, Interconnects >Rectangular Connectors >Arrays, Edge Type, Mezzanine (Board to Board)
Manufacturer TE Connectivity Erni
Packaging  Tape & Reel (TR) Cut Tape (CT)
Part Status Active
Connector Type Array, Female Sockets
Number of Positions 50
Pitch 0.039" (1.00mm)
Number of Rows 2
Mounting Type Surface Mount
Features Board Guide, Ground Bus (Plane), Pick and Place
Ultra Librarian 3D Model Ultra Librarian 224512-E CAD Model

Description

50 Position Connector Array, Female Sockets Surface Mount Gold
