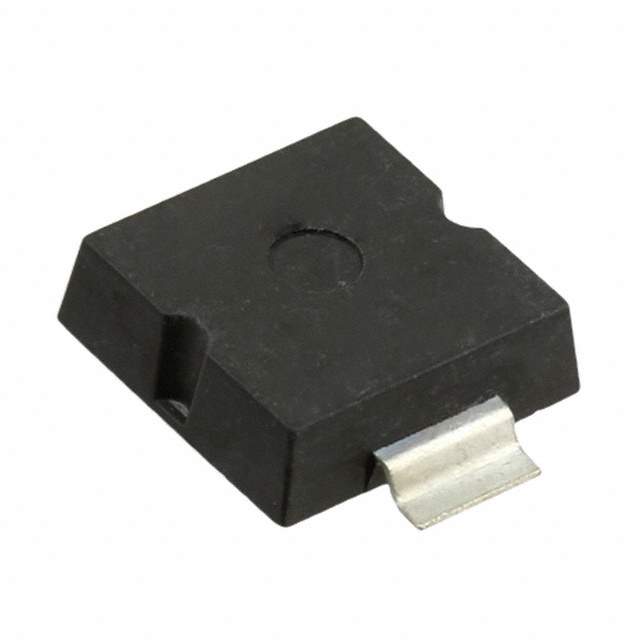

Microchip Technology's MPLAD15KP36A - Transient Voltage Suppression Diode

The MPLAD15KP36A is a robust transient voltage suppression (TVS) diode designed by Microchip Technology to protect sensitive electronic equipment from voltage transients induced by system-induced surge events and electrostatic discharge (ESD). This TVS diode is specifically engineered to safeguard circuits against extreme voltage spikes, making it an essential component for a wide range of applications including industrial systems, consumer electronics, automotive designs, and communication infrastructure.

The device is packaged in a molded plastic over glass passivated junction, providing a high level of reliability and robustness. Its P600 package is known for its high surge capability, which allows the MPLAD15KP36A to absorb high transient energies with its peak pulse power dissipation of 15000W at 10/1000μs waveform. This feature ensures that the protected components remain safe even under severe surge conditions.

With a stand-off voltage of 36V, the MPLAD15KP36A is designed to operate in environments where the potential for high voltage transients exists. Its clamping voltage is also a critical specification, as it determines the maximum voltage that the device will allow to pass through to the connected equipment during a transient event. The low incremental surge resistance of this TVS diode ensures that it can respond quickly and clamp the transient voltage to a safe level, thereby protecting the integrity of the electronic system.

Microchip's MPLAD15KP36A is RoHS compliant and adheres to industry standards for environmental safety and manufacturing. Its high temperature range makes it suitable for operation in harsh environments, and its robust design ensures long-term reliability. The TVS diode is also characterized by its fast response time, a critical feature that provides immediate protection against voltage transients.

In summary, the MPLAD15KP36A from Microchip Technology is a high-quality, high-power TVS diode that offers exceptional transient voltage protection for sensitive circuits. Its ability to dissipate large amounts of energy and to respond swiftly to surge events makes it an indispensable component for any application where voltage spikes pose a risk to electronic equipment.
