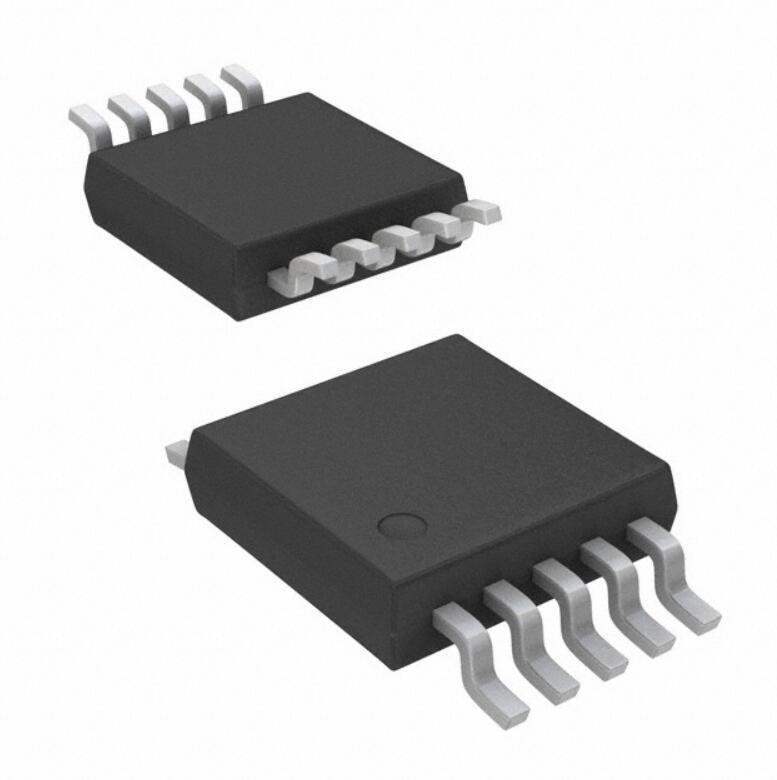

The Microchip MCP48FVB21T-E/UN represents a high-performance, 12-bit Digital-to-Analog Converter (DAC) component that offers outstanding accuracy and stability. It is a part of Microchip's extensive range of DAC devices, designed to meet the needs of a variety of applications requiring precise analog output derived from digital input signals.

Key Features

• Resolution: This device boasts a 12-bit resolution, providing fine granularity for analog signal generation.
• Channels: It features dual channels, allowing for multiple analog outputs from a single device.
• Interface: The MCP48FVB21T-E/UN communicates via an SPI-compatible serial interface, ensuring easy integration with most microcontrollers and digital systems.
• Voltage Reference: The DAC includes an internal voltage reference, which simplifies the design and reduces external component count.
• Supply Voltage: It operates on a single 2.7V to 5.5V supply, making it versatile for use in both 3.3V and 5V systems.
• Packaging: The device comes in a compact TSSOP-14 package, optimizing board space in space-constrained applications.

Applications

The MCP48FVB21T-E/UN is ideal for a wide range of applications, including but not limited to:

• Industrial automation and process control
• Data acquisition systems
• Portable instrumentation
• Analog output for embedded systems
• Automotive systems

Performance and Reliability

Microchip Technology is known for its commitment to quality and reliability, and the MCP48FVB21T-E/UN is no exception. It delivers consistent performance even under varying conditions and is built to withstand the rigors of industrial environments. With its extended temperature range, it is suitable for applications that may experience more extreme operating conditions.

Easy Integration

Integration of the MCP48FVB21T-E/UN into existing designs is straightforward, thanks to its simple SPI interface and compatibility with numerous microcontrollers. Its internal voltage reference reduces the need for additional components, further streamlining the design process.

With its robust feature set and Microchip's renowned support, the MCP48FVB21T-E/UN is an excellent choice for designers looking to add reliable analog output capabilities to their digital systems.
