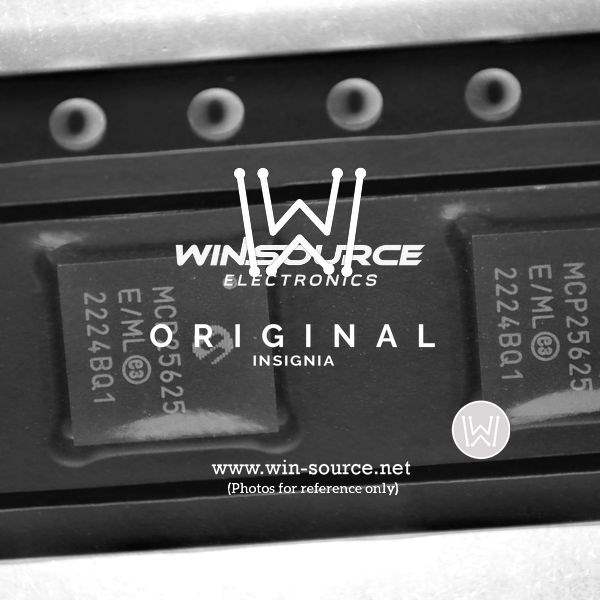

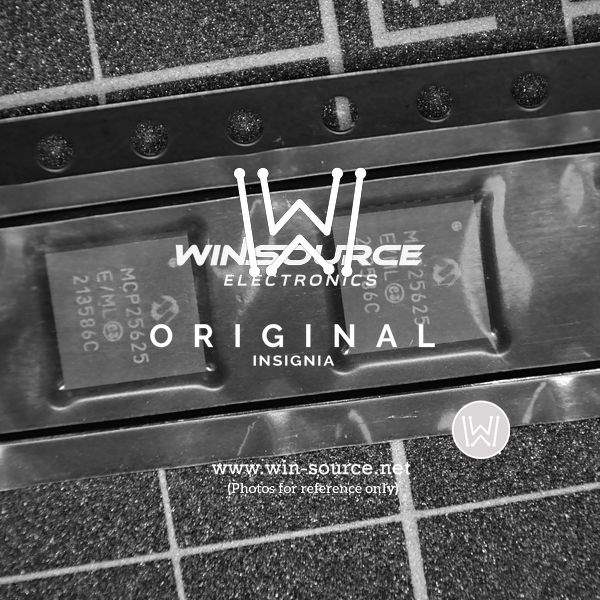

The MCP25625-E/ML from Microchip Technology is a stand-alone Controller Area Network (CAN) controller that features an integrated CAN transceiver. This device is designed to interface with 8-bit, 16-bit, and 32-bit microcontrollers with serial access. The CAN controller within the MCP25625-E/ML conforms to the ISO 11898-1:2015 standard, ensuring reliable communication in high-noise environments.

Key Features

• Integrated CAN Transceiver: The MCP25625-E/ML offers the convenience of an integrated transceiver, which simplifies the design and reduces the footprint on the PCB.
• Data rates: Capable of data rates up to 1 Mb/s, this device can handle the high-speed requirements of modern CAN networks.
• Operating Voltage: It operates at a supply voltage of 4.5V to 5.5V, making it suitable for automotive and industrial applications.
• Temperature Range: The device is operational over the industrial temperature range of -40°C to +125°C, ensuring robust performance in harsh environments.
• Package: Housed in a 28-pin QFN package, the MCP25625-E/ML is compact and ideal for space-constrained applications.

Applications

The MCP25625-E/ML is well-suited for a variety of applications where a reliable CAN communication interface is required. These include:

• Automotive systems
• Industrial automation
• Medical devices
• Heavy machinery
• Marine electronics

Additional Features

Additional features of the MCP25625-E/ML include two receive buffers with prioritized message storage, six transmit buffers with prioritization and abort features, and one-shot mode that ensures that a message is only attempted once. It also has a clock output that can be configured for use by the host controller, and a wide range of programmable bit timing to ensure compatibility with various network speeds and conditions.

The MCP25625-E/ML provides a robust and flexible interface for CAN communication, making it an excellent choice for developers looking to incorporate CAN functionality into their designs.
