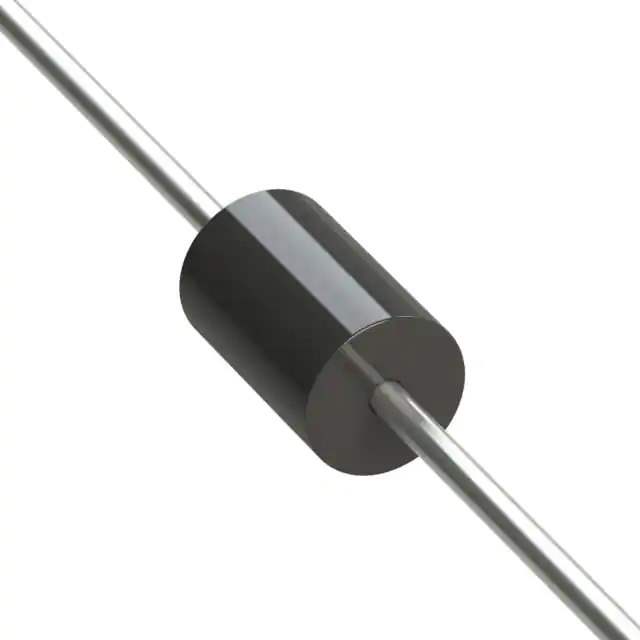

The M15KP30AE3/TR is a robust transient voltage suppression (TVS) diode designed and manufactured by Microchip Technology. This component is engineered to protect sensitive electronic equipment from voltage spikes and transient events that can cause irreparable damage to integrated circuits and other critical components.

Key Features

• Transient Protection: The device offers excellent transient voltage suppression capabilities, with a stand-off voltage of 30V, ensuring reliable protection against electrical transients.
• High Surge Capability: With its peak pulse power dissipation of 15000 Watts for a 10/1000μs waveform, the M15KP30AE3/TR can handle significant surge events, providing robust protection for your electronics.
• Low Leakage Current: It is designed with a low leakage current, minimizing power loss when the device is in standby mode and enhancing the overall efficiency of the system it protects.
• Surface Mount Package: The component comes in a surface-mount package, making it suitable for high-density PCB designs and ensuring ease of integration into various applications.
• RoHS Compliant: Compliance with the Restriction of Hazardous Substances (RoHS) directive makes the M15KP30AE3/TR an environmentally friendly choice for manufacturers concerned about sustainability.

Applications

The M15KP30AE3/TR is ideal for protecting a wide range of electronic applications, including but not limited to:

• Power Supply Circuits
• Telecommunication Systems
• Industrial Electronics
• Automotive Electronics
• Consumer Electronics

Reliability and Quality

Microchip Technology is known for its commitment to quality and reliability, and the M15KP30AE3/TR is no exception. Each device is rigorously tested to ensure it meets the highest industry standards for performance and durability.

Ordering Information

The “/TR” suffix in the part number indicates that this component is provided in tape and reel packaging, facilitating automated assembly processes and bulk handling. When ordering, ensure to specify the correct packaging option to suit your manufacturing requirements.
