Microchip Technology's KSZ8842-16MQL Ethernet Controller

The KSZ8842-16MQL is a feature-rich Ethernet controller designed by Microchip Technology, a leading provider of smart, connected, and secure embedded control solutions. This versatile networking IC is part of the KSZ family of Ethernet controllers that are renowned for their high performance, reliability, and ease of integration. The KSZ8842-16MQL is particularly well-suited for embedded applications that require efficient network connectivity and minimal power consumption.

At the core of the KSZ8842-16MQL is a dual-port switch that supports one or two MAC (Media Access Control) ports, and an MII (Media Independent Interface) that can be configured as an RMII (Reduced Media Independent Interface) for flexible design options. This makes it an ideal choice for applications such as automotive networks, industrial automation, and smart home devices that demand robust and adaptable network solutions.

The device offers a comprehensive set of features including auto-negotiation to ensure the best possible network link, and automatic crossover detection and correction, which simplifies network installation by eliminating the need for crossover cables. The KSZ8842-16MQL also supports QoS (Quality of Service) with four priority queues, enabling prioritization of traffic and enhancing network efficiency, particularly in environments with high data throughput requirements.

Security is a paramount concern in networked devices, and the KSZ8842-16MQL addresses this with its support for 802.1x port-based network access control. This feature provides a security framework that prevents unauthorized devices from gaining access to the network. Additionally, the controller includes features such as link loss recovery and IEEE 802.1d Spanning Tree Protocol to ensure network resilience and reliability.

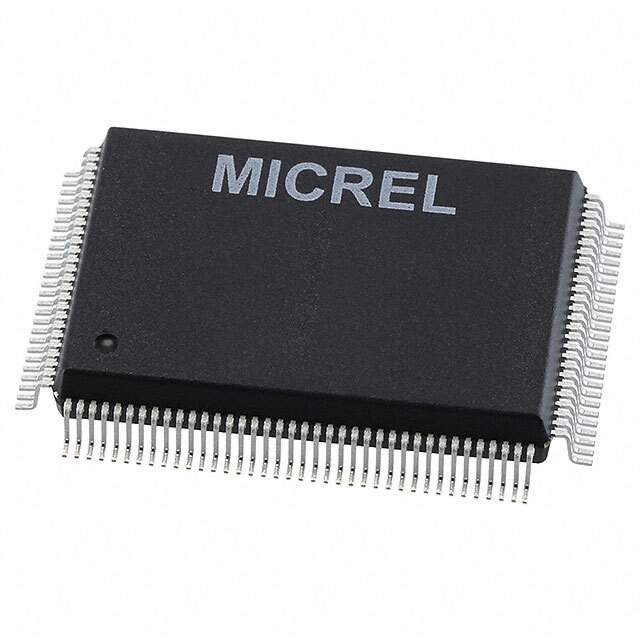

The KSZ8842-16MQL is offered in a compact 128-pin PQFP (Plastic Quad Flat Pack) package, making it suitable for space-constrained applications. With its low power consumption and advanced power management capabilities, it is designed to meet the stringent requirements of energy-sensitive systems.

In summary, the KSZ8842-16MQL from Microchip Technology is a powerful and versatile network controller that provides a reliable foundation for any embedded system requiring Ethernet connectivity. Its combination of performance, integrated features, and compact form factor makes it an excellent choice for a wide range of applications.
