Product Overview: EVB-USB5744

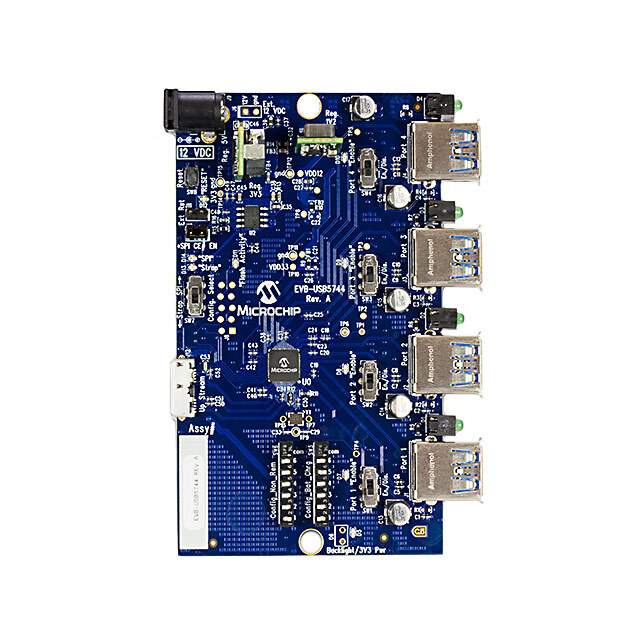

The EVB-USB5744 from Microchip Technology is a versatile and high-performance evaluation board designed for testing and developing applications using the USB5744 USB 3.1 Gen 1 hub controller. This evaluation board is an excellent tool for designers and engineers who wish to explore the features and capabilities of the USB5744 hub controller in a real-world scenario.

Key Features

• USB 3.1 Gen 1 Interface: The board supports data transfer rates of up to 5 Gbps, making it suitable for applications requiring high-speed data communication.
• Multiple USB Ports: Equipped with multiple downstream ports, the EVB-USB5744 allows for the connection of various USB devices simultaneously.
• Flexible Power Options: The board can be powered through the USB bus or an external power supply, providing flexibility for different use cases.
• Configurability: Users can configure the USB5744 hub controller via EEPROM, SMBus, or through the USB interface, allowing for a customized setup tailored to specific needs.
• LED Indicators: On-board LED indicators provide visual feedback on power status and port activity, simplifying troubleshooting and monitoring.

Applications

The EVB-USB5744 is ideal for a range of applications, including but not limited to:

• Desktop and laptop PCs
• Docking stations
• Monitor hubs
• Industrial automation
• Embedded systems

Support and Resources

Microchip Technology provides extensive support for the EVB-USB5744 with comprehensive documentation, including datasheets, schematics, and user guides. Additionally, the Microchip support team and community forums are available to assist with any questions or issues that may arise during development.

Whether you are developing new USB-based hardware, testing USB 3.1 Gen 1 capabilities, or simply need a reliable hub for your existing setup, the EVB-USB5744 evaluation board is a powerful and flexible solution that will help accelerate your development process.
