Microchip Technology's ATF1508AS-15QC160 CPLD

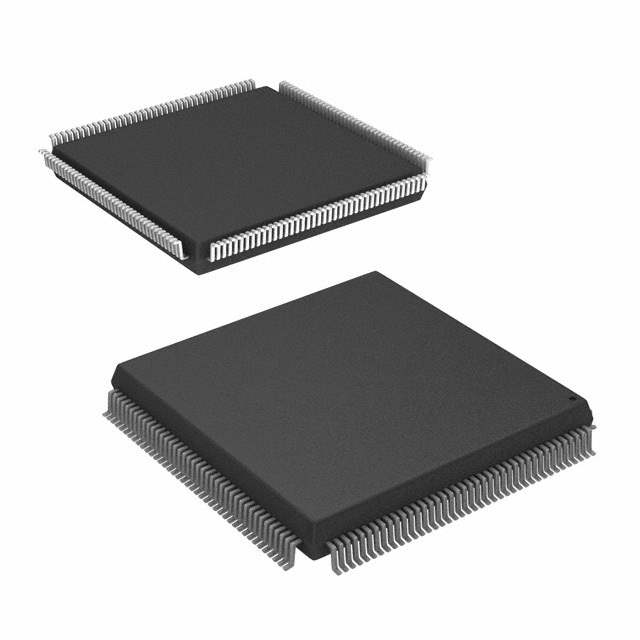

The ATF1508AS-15QC160 from Microchip Technology is a high-performance Complex Programmable Logic Device (CPLD) designed to meet the needs of high-speed logic integration. This device is part of the Atmel (now Microchip) ATF15xxAS series and offers a robust solution for system-level logic integration and development.

At the core of the ATF1508AS-15QC160 is a versatile architecture that includes 128 macrocells with 3,600 usable gates, providing ample logic resources for complex designs. The device operates at a speed grade of -15, which translates to a maximum system frequency of 83.3 MHz, allowing for fast and efficient processing of logic operations.

The ATF1508AS-15QC160 comes in a 160-pin Quad Flat Package (QFP), which offers a compact footprint for space-constrained applications. It supports a wide voltage range, typically from 4.5V to 5.5V, making it compatible with a variety of digital systems. Additionally, the device features a low-power idle mode that significantly reduces power consumption when the device is not actively processing logic functions.

One of the key advantages of this CPLD is its in-system programmability (ISP) through the industry-standard Joint Test Action Group (JTAG) interface. This feature allows for easy reprogramming and updates to the logic configuration without the need to remove the device from the circuit board. This capability is crucial for rapid prototyping, testing, and iterative design processes.

Designers can take advantage of the user-friendly software tools provided by Microchip, such as the WinCUPL, Atmel-ISP, and ProChip Designer, to simplify the development process. These tools assist in device programming, simulation, and verification, ensuring a smooth path from concept to production.

In summary, the ATF1508AS-15QC160 is a versatile and high-performance CPLD that is well-suited for applications requiring quick and efficient logic operations, in-system programmability, and a compact form factor. Its robust feature set makes it an ideal choice for a wide range of applications in the automotive, industrial, communication, and consumer electronics sectors.
