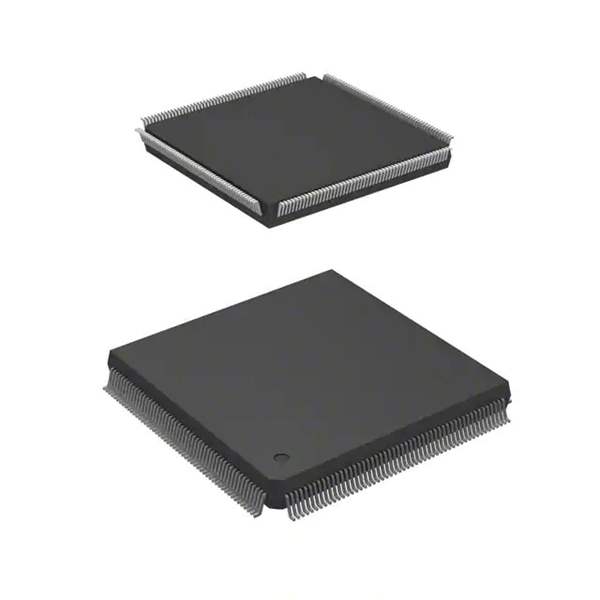

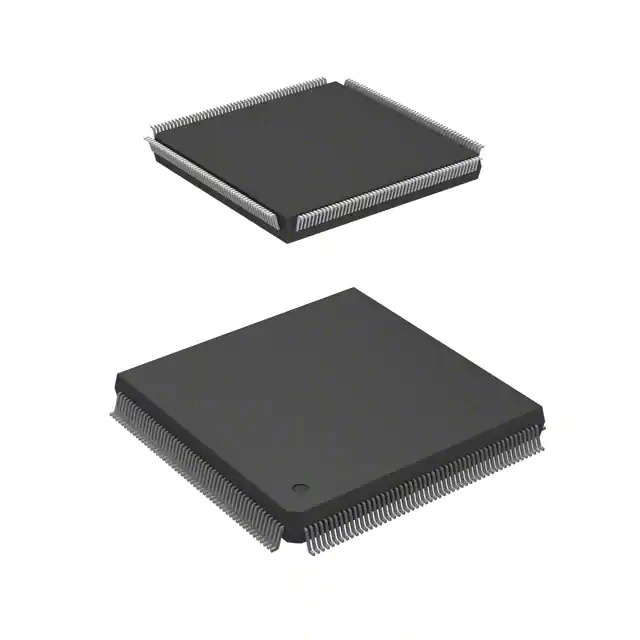

Microchip Technology's APA1000-CQ208B Product Overview

The APA1000-CQ208B is a sophisticated field-programmable gate array (FPGA) product from Microchip Technology, formerly known as Actel. This high-performance device is designed to meet the demanding needs of modern digital circuits and systems. It is part of the ProASIC3 series, which is renowned for its low power consumption, high reliability, and security features.

Key Features and Benefits

• High Capacity: The APA1000-CQ208B offers a robust 1 million system gates, providing ample space for complex logic designs and system integration.
• Live at Power-Up: This feature ensures that the device starts reliably in a known state, which is critical for applications where consistent operation is paramount.
• Flash Memory Technology: The nonvolatile flash memory allows for the FPGA to retain its configuration without the need for external memory components, simplifying the design and reducing the overall system cost.
• Low Power Operation: Microchip's focus on power efficiency is evident in the APA1000-CQ208B, making it suitable for power-sensitive applications.
• In-System Programmability: The FPGA can be reprogrammed in the field, allowing for updates and alterations without the need to replace the hardware, adding flexibility and longevity to the system design.

Applications

The APA1000-CQ208B is versatile and can be used in a variety of applications, including but not limited to:

• Industrial control systems
• Automotive applications
• Telecommunication infrastructure
• Medical equipment
• Aerospace and defense systems

Technical Specifications

• Package: 208-Pin PQFP (Plastic Quad Flat Pack)
• I/O Count: 130 user I/Os
• Logic Elements: 1 Million
• Embedded Memory: 144 kbits
• Performance: Up to 350 MHz system performance

The APA1000-CQ208B from Microchip Technology is a reliable and versatile FPGA solution that provides designers with the performance and features needed for today's complex digital systems. Its combination of high gate density, nonvolatile configuration memory, and low power consumption makes it an excellent choice for a wide range of applications.
