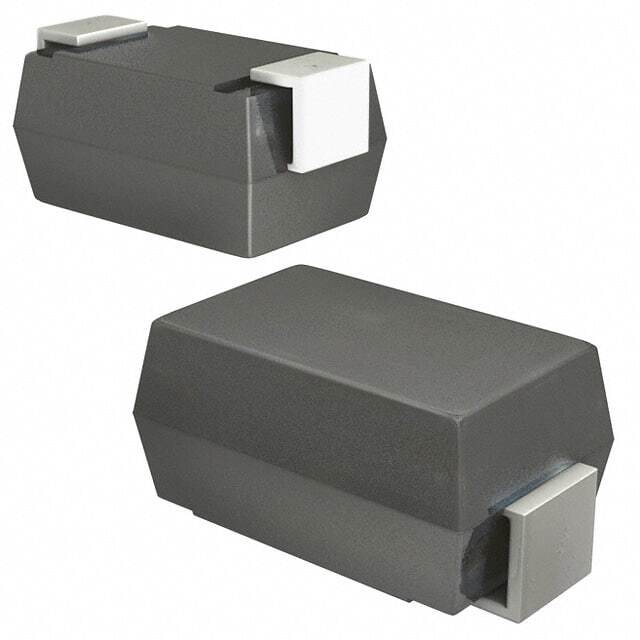

Same model may have multiple batches, images only for reference.
3SMAJ5918B-TP
Same model may have multiple batches, images only for reference.

3SMAJ5918B-TP

Part No 3SMAJ5918B-TP
Manufacturer Micro Commercial Co
Catalog Diodes - Zener - Single
Description DIODE ZENER 5.1V 3W DO214AC / Zener Diode 5.1 V 3 W ±5% Surface Mount DO-214AC (SMA)
Datasheet
3SMAJ5918B-TP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Zener - Single Zener Diodes
Mfr Micro Commercial Co
Package Tape & Reel
Product Status Active
Voltage - Zener (Nom) (Vz) 5.1 V
Tolerance ±5%
Power - Max 3 W
Impedance (Max) (Zzt) 4 Ohms
Current - Reverse Leakage @ Vr 5 µA @ 2 V
Voltage - Forward (Vf) (Max) @ If 1.5 V @ 200 mA
Temperature Range - Operating -55°C ~ 150°C
Mounting Type Surface Mount
Package / Case DO-214AC, SMA
Supplier Device Package DO-214AC (SMA)
Base Product Number 3SMAJ5918
Standard Package 7,500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0050
Win Source Part Number 855891-3SMAJ5918B-TP
Ultra Librarian 3D Model Ultra Librarian 3SMAJ5918B-TP CAD Model

Description

The 3SMAJ5918B-TP is a zener diode from Micro Commercial Co.

  • Application: Zener Diode
  • Maximum Power Rating: 3 W
  • Voltage Drop: 1.5 V @ 200 mA
  • Zener Voltage: 5.1 V
  • Reverse Leakage Current: 5 μA @ 2 V
  • Mounting Type: Surface Mountable
  • Package: DO-214AC, SMA
  • Operating Temperature: -55°C to 150°C
  • Product Status: Active
  • Manufacturer: Micro Commercial Co
