Same model may have multiple batches, images only for reference.

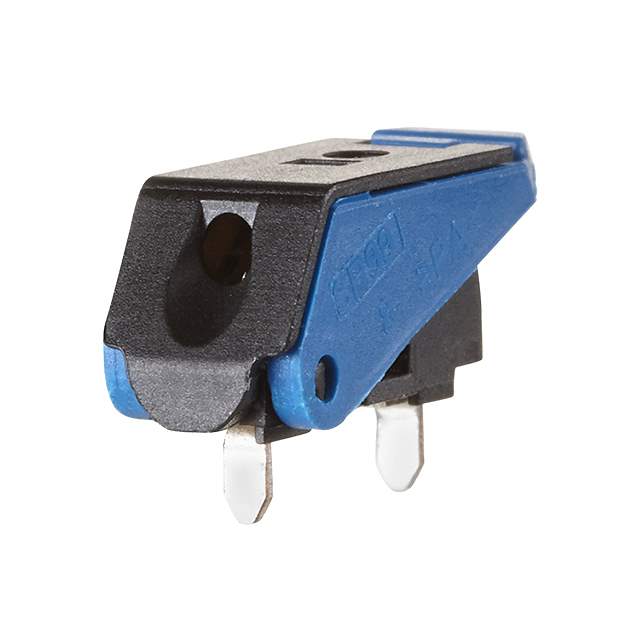

SR99S01VBNN05G7 Real Image
Same model may have multiple batches, images only for reference.

SR99S01VBNN05G7

Part No SR99S01VBNN05G7
Manufacturer METZ CONNECT USA Inc.
Catalog Terminal Blocks
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminal Blocks - Wire to Board
Mfr METZ CONNECT USA Inc.
Package Tape & Reel (TR),Cut Tape (CT)
Number of Levels 1
Positions Per Level 1
Mating Orientation Horizontal with Board
Current 9 A
Voltage 300 V
Wire Gauge 16-24 AWG
Mounting Type Through Hole
Wire Termination Screwless - Spring Cage, Tension Clamp
Features Push Button Actuated
Color Blue
Temperature Range - Operating -40°C ~ 105°C
Housing Material Polyamide (PA66), Nylon 6/6
Contact Material - Plating Copper Alloy - Tin Plated
Clamp Material - Plating Steel
Base Product Number SR99S01VB
Other Names 1849-1160-2,1849-1160-6INACTIVE,1849-1160-6,1849-1160-6,1849-1160-1
Standard Package 750
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1285205-SR99S01VBNN05G7
Ultra Librarian 3D Model Ultra Librarian SR99S01VBNN05G7 CAD Model

Description

The SR99S01VBNN05G7 terminal block is a screwless, spring cage, tension clamp type connector that can accommodate wire gauges of 16-24 AWG.

  • Current Rating: 9 A
  • Voltage Rating: 300 V
  • Mounting: through-hole mounting
  • Mating Orientation: horizontal mating orientation with the board
  • Actuation: push button actuation
  • Packaging: tape and reel or cut tape packaging
  • Housing Material: polyamide (PA66), nylon 6/6
  • Contact Material: copper alloy with tin plating
  • Clamp Material: steel
  • Operating Temperature Range: -40°C to 105°C
  • Application: wire to board applications
  • Manufacturer: METZ CONNECT USA Inc.
  • Standard Package: 750
