Same model may have multiple batches, images only for reference.

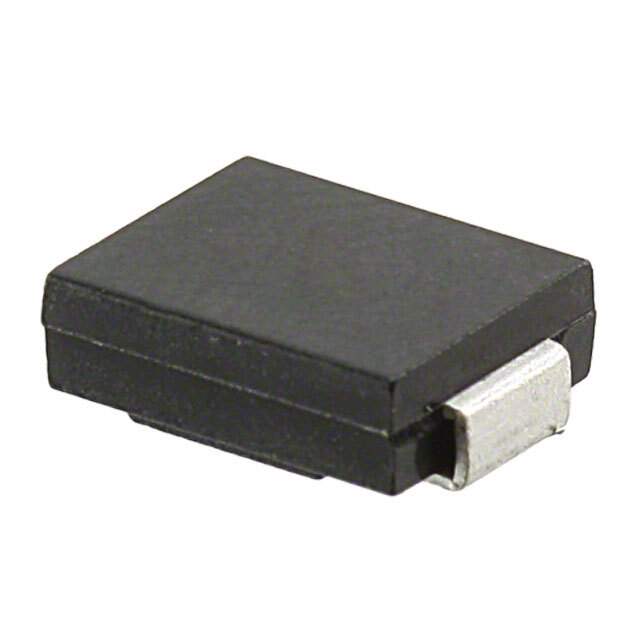

SMCJ140CA Real Image
Same model may have multiple batches, images only for reference.

SMCJ140CA

Part No SMCJ140CA
Manufacturer Meritek
Catalog TVS - Diodes
Datasheet
SMCJ140CA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Meritek
Series SMCJ
Package Tape & Reel (TR)
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 140V
Voltage - Breakdown (Min) 155V
Voltage - Clamping (Max) @ Ipp 226.8V
Current - Peak Pulse (10/1000µs) 6.61A
Power - Peak Pulse 1500W (1.5kW)
Applications General Purpose
Temperature Range - Operating -55°C ~ 150°C
Mounting SMD (SMT)
Package / Case DO-214AB (SMC)
Other Names 2997-SMCJ140CATR
Standard Package 20
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1299932-SMCJ140CA
Ultra Librarian 3D Model Ultra Librarian SMCJ140CA CAD Model

Description

The Meritek SMCJ140CA is a circuit protection electronic component designed by Meritek.

  • Category: TVS-Diodes
  • Series: SMCJ
  • Package: Tape and reel (TR)
  • Channel: Bidirectional
  • Reverse Standoff Voltage: 140V
  • Breakdown Voltage: 155V
  • Clamping Voltage @ Ipp: 226.8V
  • Peak Pulse Power: 1500W
  • Operating Temperature: -55°C to 150°C
  • REACH: Unaffected
  • HTSUS: 8541.10.0080
  • Win Source Part Number: 1299932-SMCJ140CA
