Same model may have multiple batches, images only for reference.

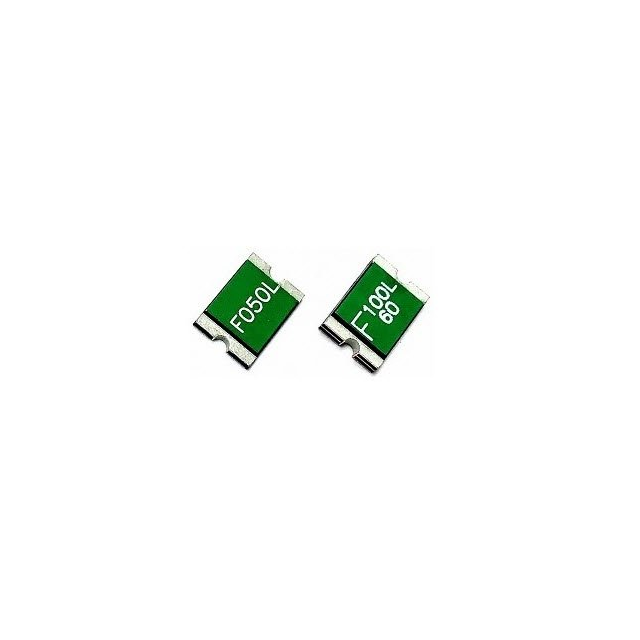

MPTS1206L010R Real Image
Same model may have multiple batches, images only for reference.

MPTS1206L010R

Part No MPTS1206L010R
Manufacturer Meritek
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 60V 0.1A 1206 / Polymeric PTC Resettable Fuse 60V 100 mA Ih Surface Mount 1206 (3216 Metric), Concave
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - PTC Resettable Fuses
Mfr Meritek
Series MPTS
Package Tape & Reel
Type Polymeric
Voltage - Max 60V
Current - Max 100 A
Current - Hold (Ih) (Max) 100 mA
Current - Trip (It) 250 mA
Time to Trip 1 s
Resistance - Initial (Ri) (Min) 1.6 Ohms
Resistance - Post Trip (R1) (Max) 15 Ohms
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case 1206 (3216 Metric) , Concave
Size / Dimension 0.128" L x 0.065" W (3.25mm x 1.65mm)
Thickness (Max) 0.033" (0.85mm)
Approval Agency cUL, TUV, UL
Standard Package 3,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8070
Win Source Part Number 1340840-MPTS1206L010R
Ultra Librarian 3D Model Ultra Librarian MPTS1206L010R CAD Model

Description

The Meritek MPTS1206L010R is a polymeric PTC resettable fuse from the MPTS series.

  • Manufacturer: Meritek
  • Part Number: MPTS1206L010R
  • Series: MPTS
  • Type: Polymeric PTC Resettable Fuse
  • Maximum Voltage: 60V
  • Maximum Current: 100A
  • Trip Current: 250mA
  • Time to Trip: 1s
  • Mounting Type: SMD
  • Packaging: Tape and Reel
  • Standard Package: 3,000
  • Thickness: 0.033" (0.85mm)
  • Size: 0.128" L x 0.065" W (3.25mm x 1.65mm)
  • RoHS: Compliant
  • Approvals: cUL, TUV, UL
