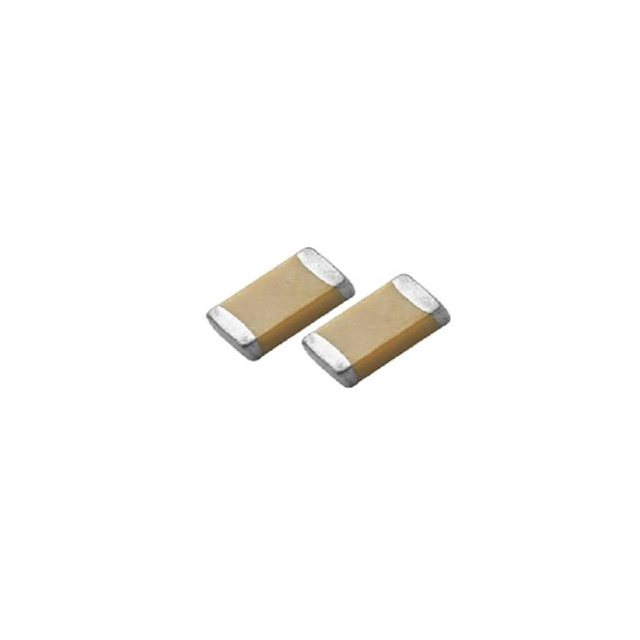

HC1812YV684Z201 Real Image
Same model may have multiple batches, images only for reference.

HC1812YV684Z201

Part No HC1812YV684Z201
Manufacturer Meritek
Catalog Ceramic Capacitors
Description CAP CER 0.68UF 200V Y5V 1812 / 0.68 µF -20%, +80% 200V Ceramic Capacitor Y5V (F) 1812 (4532 Metric)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Mfr Meritek
Series HC
Package Tape & Reel (TR)
Capacitance 0.68 µF
Tolerance -20%, +80%
Voltage - Rated 200V
Temperature Coefficient Y5V (F)
Temperature Range - Operating -25°C ~ 85°C
Applications General Purpose
Mounting Type Surface Mount, MLCC
Package / Case 1812 (4532 Metric)
Dimension 0.180" L x 0.125" W (4.60mm x 3.20mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8532.24.0020
Other Names 2997-HC1812YV684Z201TR
Standard Package 1,000
Win Source Part Number 1061836-HC1812YV684Z201
Ultra Librarian 3D Model Ultra Librarian HC1812YV684Z201 CAD Model

Description

The HC1812YV684Z201 is a ceramic capacitor from the HC series that is designed for general-purpose applications.

  • Capacitance: 0.68 µF
  • Rated Voltage: 200V
  • Tolerance: -20% to +80%
  • Temperature Coefficient: Y5V (F)
  • Package: tape and reel (TR)
  • Package/Case Size: 1812 (4532 Metric)
  • Operating Temperature Range: -25°C to 85°C
  • Type: surface mount, MLCC
  • Standard Package: 1,000
  • Dimension: 0.180" L x 0.125" W (4.60mm x 3.20mm)
  • Alternative Parts (Cross-Reference): ECCN: EAR99 and 2997-HC1812YV684Z201TR
