Same model may have multiple batches, images only for reference.

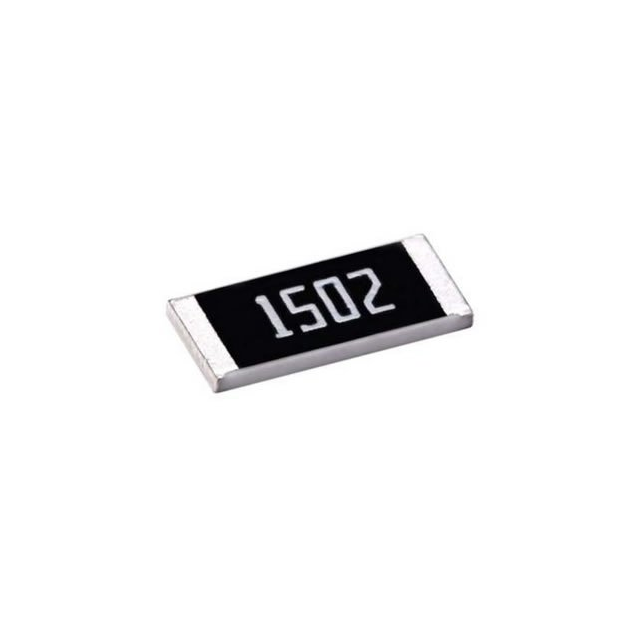

CR204701F Real Image
Same model may have multiple batches, images only for reference.

CR204701F

Part No CR204701F
Manufacturer Meritek
Catalog Chip Resistor - Surface Mount
Description RES SMD 4.7K OHM 1% 1/16W 0402 / 4.7 kOhms ±1% 0.063W, 1/16W Chip Resistor 0402 (1005 Metric) Thick Film
Datasheet
CR204701F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Meritek
Series CR
Package Tape & Reel (TR)
Resistance 4.7 kOhms
Tolerance ±1%
Power (Watts) 0.063W, 1/16W
Composition Thick Film
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 0402 (1005 Metric)
Dimension 0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max) 0.016" (0.40mm)
Number of Terminations 2
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Other Names 2997-CR204701FTR
Standard Package 10,000
Win Source Part Number 1195112-CR204701F
Ultra Librarian 3D Model Ultra Librarian CR204701F CAD Model

Description

The Meritek CR series is a chip resistor that comes in a 0402 (1005 Metric) package.

  • Package: 0402 (1005 Metric)
  • Packaging: tape and reel
  • Composition: thick film
  • Resistance: 4.7 kOhms
  • Tolerance: ±1%
  • Temperature Coefficient: ±100ppm/°C
  • Power Rating: 0.063W, 1/16W
  • Temperature Range: -55°C to 155°C
