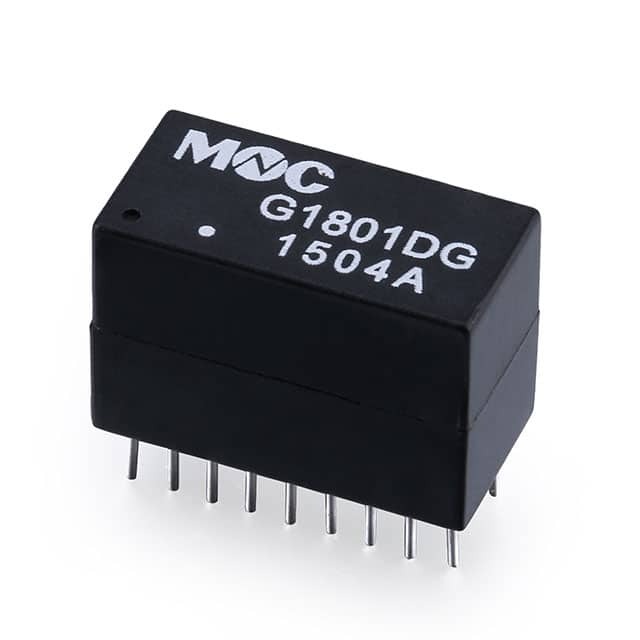

Same model may have multiple batches, images only for reference.
G1801DG
Same model may have multiple batches, images only for reference.

G1801DG

Part No G1801DG
Manufacturer Mentech Technology USA Inc.
Catalog Pulse Transformers
Description SINGLE LAN XFMR 1000 BASE-T
Datasheet
G1801DG Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Pulse Transformers
Mfr Mentech Technology USA Inc.
Package Tube
Product Status Active
Transformer Type LAN 10/100/1000 Base-T
Inductance 350µH
Mounting Type Through Hole
Size / Dimension 0.819" L x 0.402" W (17.30mm x 9.00mm)
Height - Seated (Max) 0.467" (11.85mm)
Temperature Range - Operating 0°C ~ 70°C
Standard Package 5 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.31.9000
Win Source Part Number 872493-G1801DG
Ultra Librarian 3D Model Ultra Librarian G1801DG CAD Model

Description

The 872493-G1801DG is a pulse transformer designed for use in transformers.

  • Type: LAN 10/100/1000 Base-T transformer
  • Size: 0.819" L x 0.402" W (17.30mm x 9.00mm)
  • Inductance: 350µH
  • Maximum Seated Height: 0.467" (11.85mm)
  • Package Type: tube
  • Mounting: through hole
  • Operating Temperature: 0°C to 70°C
  • Manufacturer: Mentech Technology USA Inc.
  • Product Status: active
