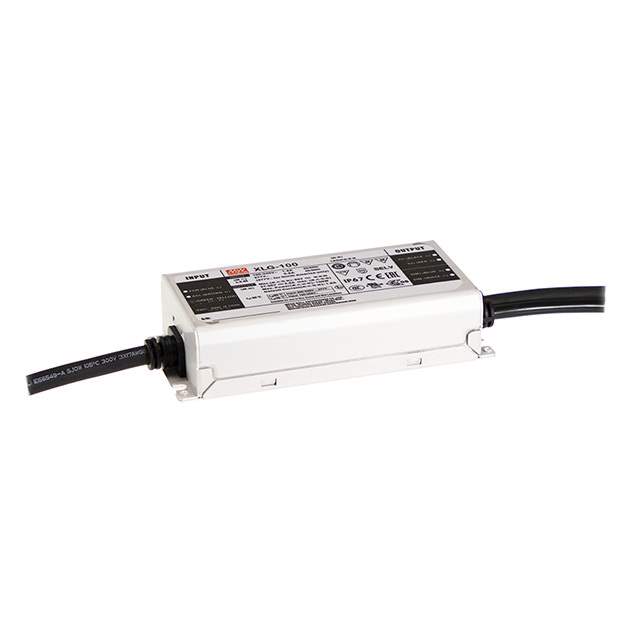

XLG-100-12-A Real Image
Same model may have multiple batches, images only for reference.

XLG-100-12-A

Part No XLG-100-12-A
Manufacturer Mean Well Enterprises Co., Ltd.
Catalog External/Internal (Off - Board) LED Drivers
Description 100W CONSTANT POWER MODE LED DRI / 8A 12V Constant Current LED Driver AC DC Converter Topology 1 Output
Datasheet
XLG-100-12-A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board)>LED Drivers
Mfr MEAN WELL USA Inc.
Series XLG-100 (100W)
Package Box
Type Constant Current
Topology AC DC Converter
Number of Outputs 1
Voltage - Input (Min) 100VAC
Voltage - Input (Max) 305VAC
Voltage - Output 12V
Current - Output (Max) 8A
Power (Watts) 96 W
Voltage - Isolation 4.2 kV
Features OCP, OTP, OVP, SCP
Ratings IP67
Temperature Range - Operating -40°C ~ 90°C
Efficiency 92%
Termination Style Wire Leads
Dimension 4.92" L x 2.48" W x 1.26" H (125.0mm x 63.0mm x 32.0mm)
Approval Agency CB, CCC, CE, cURus, EAC, ENEC, RCM
Mounting Type Chassis Mount
Base Product Number XLG-100
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9520
Other Names 1866-5632
Standard Package 24
Win Source Part Number 1069518-XLG-100-12-A
Ultra Librarian 3D Model Ultra Librarian XLG-100-12-A CAD Model

Description

The MEAN WELL USA Inc. XLG-100-12-A is a high-quality LED driver that operates on a constant current type.

  • Type: Constant Current
  • Power Rating: 96W
  • Output Voltage: 12V
  • Series: XLG-100
  • IP Rating: IP67
  • Features: OCP, OTP, OVP, and SCP
  • Type: AC DC Converter
  • Efficiency: 92%
  • Mounting Style: Chassis Mount
  • Temperature Range: -40°C and 90°C
  • Package Dimensions: 4.92" L x 2.48" W x 1.26" H (125.0mm x 63.0mm x 32.0mm)
