Same model may have multiple batches, images only for reference.

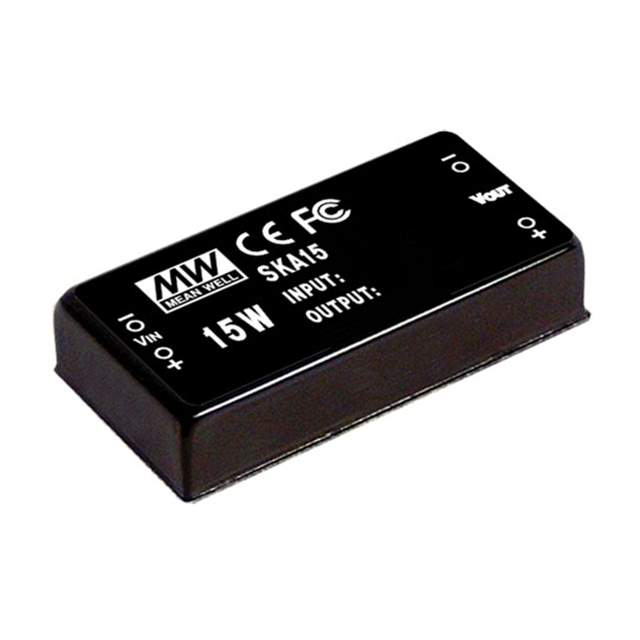

SKA15A-05

Name: SKA15A-05
Brand: Mean Well Enterprises Co., Ltd.
SKU: 958863
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SKA15A-05
Manufacturer	Mean Well Enterprises Co., Ltd.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 5V 15W / Isolated Module DC DC Converter 1 Output 5V 3A 9V - 18V Input
Datasheet	SKA15A-05 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	MEAN WELL USA Inc.
Series	SKA15 (15W)
Package	Tube
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	9V
Voltage - Input (Max)	18V
Voltage - Output 1	5V
Current - Output (Max)	3A
Power (Watts)	15 W
Voltage - Isolation	1 kV
Applications	ITE (Commercial)
Features	OVP, SCP
Temperature Range - Operating	-40°C ~ 71°C (With Derating)
Efficiency	78%
Mounting Type	Through Hole
Package / Case	5-DIP Module
Dimension	2.00" L x 1.00" W x 0.44" H (50.8mm x 25.4mm x 11.3mm)
Base Product Number	SKA15
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Names	SKA15A-05-ND,1866-4556
Standard Package	400
Win Source Part Number	958863-SKA15A-05
Ultra Librarian 3D Model	Ultra Librarian SKA15A-05 CAD Model

Alternative Products

Description

The SKA15A-05 is a 15W isolated module power supply board mount DC DC converter from MEAN WELL USA Inc. The Win Source Part Number is 958863-SKA15A-05.

Voltage Isolation: 1 kV
Number of Outputs: 1
Current - Output (Max): 3A
Voltage - Input (Min): 9V
Voltage - Input (Max): 18V
Voltage - Output 1: 5V
Efficiency: 78%
Mounting Type: Through Hole
Package / Case: 5-DIP Module
Temperature Range - Operating: -40°C ~ 71°C (with derating)
Dimension: 2.00" L x 1.00" W x 0.44" H (50.8mm x 25.4mm x 11.3mm)
