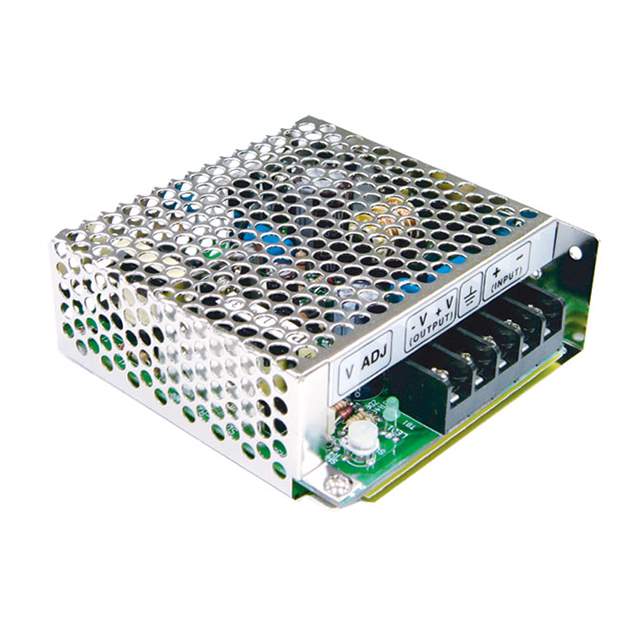

SD-25A-24

Name: SD-25A-24
Brand: Mean Well Enterprises Co., Ltd.
SKU: 1092006
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SD-25A-24
Manufacturer	Mean Well Enterprises Co., Ltd.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC/DC CONVERTER 24V 26W / Enclosed DC DC Converter 1 Output 24V 1.1A 18V Input
Datasheet	SD-25A-24 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - External/Internal (Off-Board)>DC DC Converters
Mfr	MEAN WELL USA Inc.
Series	SD-25 (25W)
Package	Box
Type	Enclosed
Voltage - Input (Min)	9.2V
Voltage - Input (Max)	18V
Number of Outputs	1
Voltage - Output 1	24V
Current - Output (Max)	1.1A
Power (Watts)	26W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Efficiency	75%
Temperature Range - Operating	-10°C ~ 60°C (With Derating)
Mounting Type	Chassis Mount
Dimension	3.90" L x 3.82" W x 1.42" H (99.0mm x 97.0mm x 36.0mm)
Approval Agency	CE
Base Product Number	SD-25A
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Names	1866-1064,SD-25A-24MW-ND,SD-25A-24MW
Standard Package	45
Win Source Part Number	1092006-SD-25A-24
Ultra Librarian 3D Model	Ultra Librarian SD-25A-24 CAD Model

Alternative Products

Description

The SD-25 (25W) series of enclosed DC DC converters by MEAN WELL USA Inc. includes the SD-25A-24, which has a power output of 26W and a voltage isolation of 1.5 kV.

Output: One output
Maximum Current Output: 1.1A
Voltage Input Range: 9.2V to 18V
Output Voltage: 24V
Efficiency: 75%
Applications: ITE (Commercial)
Mounting: Chassis mount
Temperature Range: -10°C to 60°C (with derating)
Length: 3.90 inches
Width: 3.82 inches
Height: 1.42 inches
Alternative parts: LS25-24, LS35-24, LS25-3.3SD25A-24, and SD25A24
