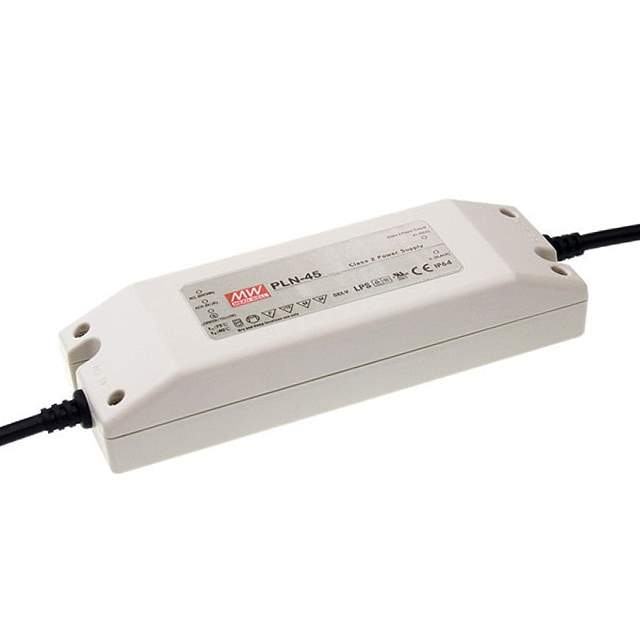

PLN-45-12 Real Image
Same model may have multiple batches, images only for reference.

PLN-45-12

Part No PLN-45-12
Manufacturer Mean Well Enterprises Co., Ltd.
Catalog External/Internal (Off - Board) LED Drivers
Description LED DRIVER CC AC/DC 9-12V 3.8A / 3.8A 9 ~ 12V Constant Current LED Driver AC DC Converter Topology 1 Output
Datasheet
PLN-45-12 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board)>LED Drivers
Mfr MEAN WELL USA Inc.
Series PLN-45 (45W)
Package Box
Product Status Not For New Designs
Type Constant Current
Topology AC DC Converter
Number of Outputs 1
Voltage - Input (Min) 90VAC
Voltage - Input (Max) 295VAC
Voltage - Output 9 ~ 12V
Current - Output (Max) 3.8A
Power (Watts) 46 W
Voltage - Isolation 3.75 kV
Features OCP, OTP, OVP, SCP
Ratings IP64
Temperature Range - Operating -30°C ~ 50°C
Efficiency 83.5%
Termination Style Wire Leads
Dimension 7.13" L x 2.42" W x 1.38" H (181.0mm x 61.5mm x 35.0mm)
Approval Agency CB, CE, cURus, PSE, TUV
Mounting Type Chassis Mount
Base Product Number PLN-45
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9510
Standard Package 24
Win Source Part Number 1081437-PLN-45-12
Ultra Librarian 3D Model Ultra Librarian PLN-45-12 CAD Model

Description

The MEAN WELL USA Inc. PLN-45 (45W) constant current LED driver is an efficient electronic component that is designed to power LED lights.

  • Power Rating: 46W
  • Efficiency: 83.5%
  • ECCN: EAR99
  • Popularity Rating: 67%
  • Supply and Demand Status: Unlimited
  • MSL Level: 1 (Unlimited)
  • REACH: Unaffected
  • HTSUS: 8504.40.9510
