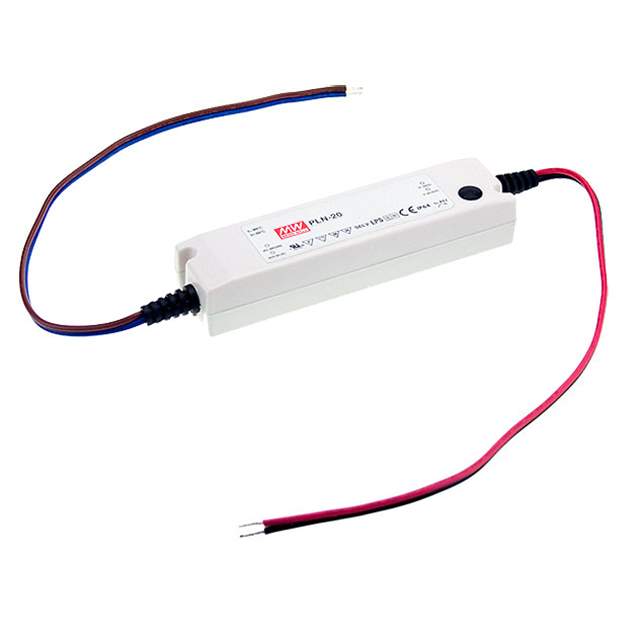

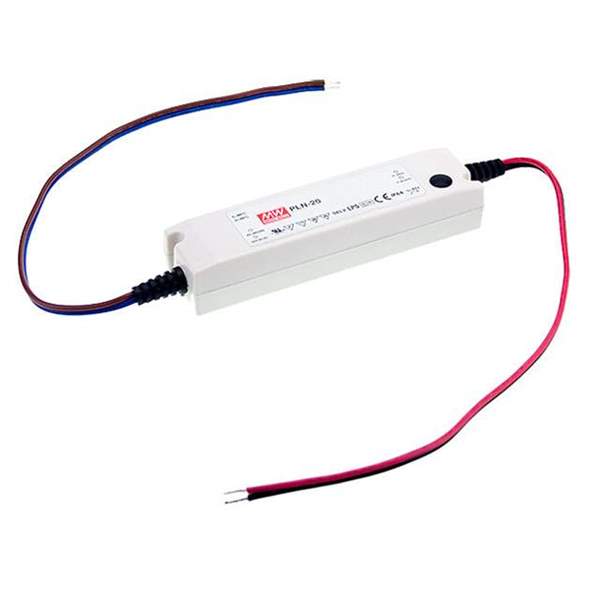

PLN-20-12 Real Image
Same model may have multiple batches, images only for reference.

PLN-20-12

Part No PLN-20-12
Manufacturer Mean Well Enterprises Co., Ltd.
Catalog External/Internal (Off - Board) LED Drivers
Description LED DRIVER CC AC/DC 9-12V 1.6A / 1.6A 9 ~ 12V Constant Current LED Driver AC DC Converter Topology 1 Output
Datasheet
PLN-20-12 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board)>LED Drivers
Mfr MEAN WELL USA Inc.
Series PLN-20 (20W)
Package Box
Type Constant Current
Topology AC DC Converter
Number of Outputs 1
Voltage - Input (Min) 90VAC
Voltage - Input (Max) 277VAC
Voltage - Output 9 ~ 12V
Current - Output (Max) 1.6A
Power (Watts) 19 W
Voltage - Isolation 3.75 kV
Features OCP, OTP, OVP, SCP
Ratings IP64
Temperature Range - Operating -30°C ~ 60°C
Efficiency 80%
Termination Style Wire Leads
Dimension 5.85" L x 1.52" W x 1.10" H (148.5mm x 38.5mm x 28.0mm)
Approval Agency CB, CE, cURus, PSE, TUV
Mounting Type Chassis Mount
Base Product Number PLN-20
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9510
Other Names PLN-20-12-ND,1866-3843
Standard Package 60
Win Source Part Number 1085483-PLN-20-12
Ultra Librarian 3D Model Ultra Librarian PLN-20-12 CAD Model

Description

The PLN-20-12 LED driver from MEAN WELL USA Inc. is a constant current type power supply with a power rating of 19W and an output voltage of 9~12V.

  • Type: Constant Current
  • Power Rating: 19W
  • Output Voltage: 9~12V
  • Termination: Wire Leads
  • Protection: OCP, OTP, OVP, and SCP
  • IP Rating: IP64
  • Efficiency: 80%
  • Mounting: Chassis Mount
  • Operating Temperature: -30°C to 60°C
  • Dimension: 5.85" L x 1.52" W x 1.10" H (148.5mm x 38.5mm x 28.0mm)
  • Package: Box
  • Cross-Reference: LS35-12, LS25-12, and LS25-15PLN20-12
