Same model may have multiple batches, images only for reference.

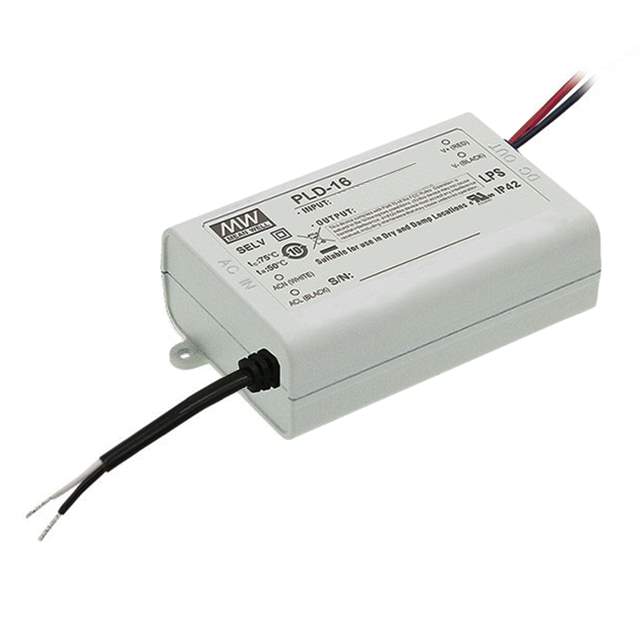

PLD-16-1050B Real Image
Same model may have multiple batches, images only for reference.

PLD-16-1050B

Part No PLD-16-1050B
Manufacturer Mean Well Enterprises Co., Ltd.
Catalog External/Internal (Off - Board) LED Drivers
Description LED DRVR CC AC/DC 12-16V 1.05A / 1.05A 12 ~ 16V Constant Current LED Driver AC DC Converter Topology 1 Output
Datasheet
PLD-16-1050B Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board)>LED Drivers
Mfr MEAN WELL USA Inc.
Series PLD-16 (16W)
Package Box
Type Constant Current
Topology AC DC Converter
Number of Outputs 1
Voltage - Input (Min) 180VAC
Voltage - Input (Max) 295VAC
Voltage - Output 12 ~ 16V
Current - Output (Max) 1.05A
Power (Watts) 17 W
Voltage - Isolation 3.75 kV
Features OTP, SCP
Ratings IP42
Temperature Range - Operating -30°C ~ 50°C
Efficiency 85%
Termination Style Wire Leads
Dimension 3.31" L x 2.24" W x 1.16" H (84.0mm x 57.0mm x 29.5mm)
Approval Agency CB, CE, cURus
Mounting Type Chassis Mount
Base Product Number PLD-16
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9510
Standard Package 72
Win Source Part Number 1114728-PLD-16-1050B
Ultra Librarian 3D Model Ultra Librarian PLD-16-1050B CAD Model

Description

The PLD-16-1050B is a constant current type LED driver designed and manufactured by MEAN WELL USA Inc.

  • Series: PLD-16 (16W)
  • Package: Box
  • Protection Features: OTP, SCP
  • Standard Package: 72
  • IP Rating: IP42
  • Power Output: 17W
  • Voltage Output Range: 12~16V
  • Operating Temperature: -30°C to 50°C
  • ECCN: EAR99
  • REACH: Unaffected
