Same model may have multiple batches, images only for reference.

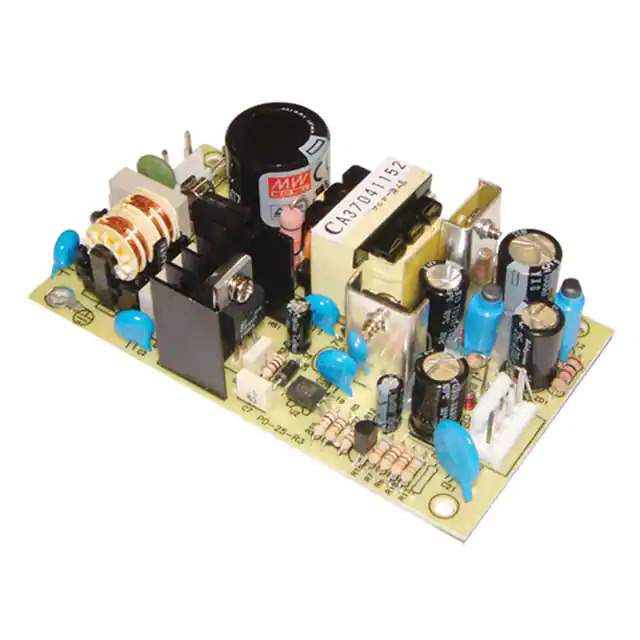

PD-25A Real Image
Same model may have multiple batches, images only for reference.

PD-25A

Part No PD-25A
Manufacturer Mean Well Enterprises Co., Ltd.
Catalog External/Internal (Off - Board) AC DC Converters
Description AC/DC CONVERTER 5V 12V 25W / Open Frame AC DC Converters 2 Output 5V 12V 85 ~ 264 VAC, 120 ~ 370 VDC Input
Datasheet
PD-25A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board) - AC DC Converters
Mfr Mean Well Enterprises Co., Ltd.
Series PD-25 (25W)
Package Box
Product Status Active
Type Open Frame
Number of Outputs 2
Voltage - Input 85 ~ 264 VAC, 120 ~ 370 VDC
Voltage - Output 1 5V
Voltage - Output 2 12V
Current - Output 1 2.1 A
Current - Output 2 1.2 A
Power (Watts) 25W
Applications ITE (Commercial)
Voltage - Isolation 3 kV
Efficiency 71%
Temperature Range - Operating -10°C ~ 60°C (With Derating)
Features Universal Input
Mounting Type Chassis Mount
Size / Dimension 4.21" L x 2.40" W x 1.10" H (107.0mm x 61.0mm x 28.0mm)
Approval Agency CB, CE, cURus, TUV
Minimum Load Required Yes
Base Product Number PD-25
Standard Package 96 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9510
Win Source Part Number 847290-PD-25A
Ultra Librarian 3D Model Ultra Librarian PD-25A CAD Model

Description

The PD-25A is a high-performance power supply converter designed for various applications in the commercial sector.

  • Power Output: 25W
  • Type: Open Frame
  • Input: Universal
  • Input Voltage: 85VAC to 264VAC, 120VDC to 370VDC
  • Output 1 Voltage: 5V
  • Output 2 Voltage: 12V
  • Voltage Isolation: 3 kV
  • Size: 4.21" L x 2.40" W x 1.10" H
  • Mounting: Chassis Mount
  • Operating Temperature: -10°C to 60°C
  • Efficiency: 71%
  • Approvals: CB, CE, cURus, and TUV
