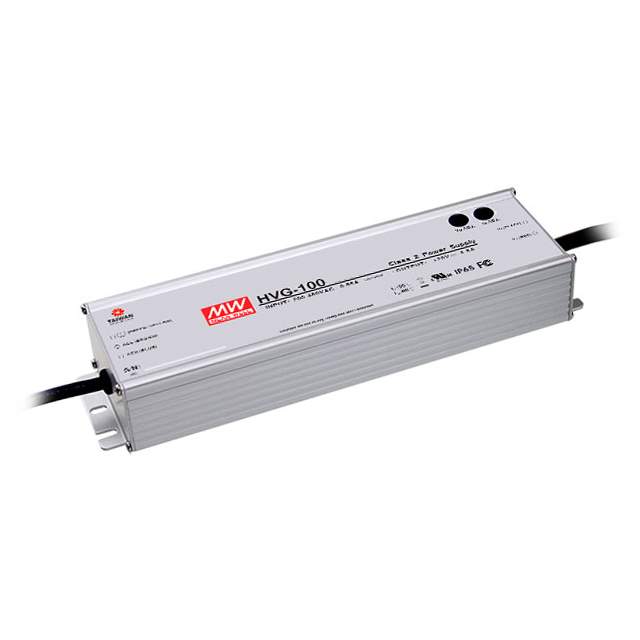

HVG-100-20B Real Image
Same model may have multiple batches, images only for reference.

HVG-100-20B

Part No HVG-100-20B
Manufacturer Mean Well Enterprises Co., Ltd.
Catalog External/Internal (Off - Board) LED Drivers
Description LED DRVR CC/CV AC/DC 10-20V 4.8A / 4.8A 10 ~ 20V Constant Current, Voltage LED Driver AC DC Converter Topology 1 Output
Datasheet
HVG-100-20B Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board)>LED Drivers
Mfr MEAN WELL USA Inc.
Series HVG-100 (100W)
Package Box
Type Constant Current, Voltage
Topology AC DC Converter
Number of Outputs 1
Voltage - Input (Min) 180VAC
Voltage - Input (Max) 528VAC
Voltage - Output 10 ~ 20V
Current - Output (Max) 4.8A
Power (Watts) 96 W
Voltage - Isolation 3.75 kV
Dimming Analog, PWM
Features OCP, OTP, OVP, SCP
Ratings IP67
Temperature Range - Operating -40°C ~ 90°C
Efficiency 90%
Termination Style Wire Leads
Dimension 8.35" L x 2.68" W x 1.52" H (212.0mm x 68.0mm x 38.5mm)
Approval Agency cURus
Mounting Type Chassis Mount
Base Product Number HVG-100
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9520
Other Names 1866-5244,HVG-100-20B-ND
Standard Package 12
Win Source Part Number 965314-HVG-100-20B
Ultra Librarian 3D Model Ultra Librarian HVG-100-20B CAD Model

Description

The MEAN WELL USA Inc. HVG-100-20B is an electronic component that belongs to the power supplies - external/internal (off-board) category.

  • Category: Power supplies - external/internal (off-board)
  • Termination Style: Wire leads
  • Features: OCP, OTP, OVP, SCP
  • Temperature Range: -40°C to 90°C
  • Efficiency: 90%
