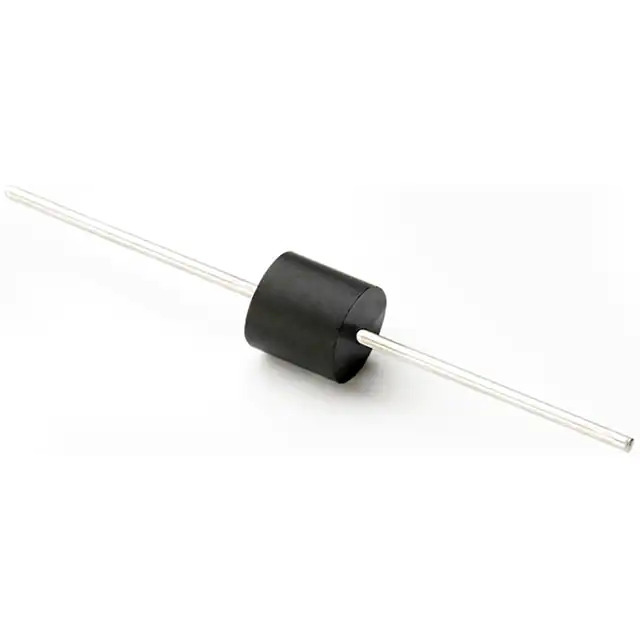

Same model may have multiple batches, images only for reference.

15KP30A

Name: 15KP30A
Brand: MDE Semiconductor, Inc.
SKU: 1377335
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	15KP30A
Manufacturer	MDE Semiconductor, Inc.
Catalog	TVS - Diodes
Description	TVS DIODE UP 30VRWM 50.7VC
Datasheet	15KP30A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr	MDE Semiconductor Inc
Series	15KP
Package	Bulk
Product Status	Active
Type	Zener
Unidirectional Channels	1
Voltage - Reverse Standoff (Typ)	30V
Voltage - Breakdown (Min)	33.51V
Voltage - Clamping (Max) @ Ipp	50.7V
Current - Peak Pulse (10/1000µs)	297.8A
Power - Peak Pulse	15000W (15kW)
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	-
Temperature Range - Operating	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Package / Case	P600, Axial
Supplier Device Package	P600
MSL Level	1 (Unlimited)
REACH Status	REACH info available upon request
ECCN	EAR99
HTSUS	8541.10.0080
Win Source Part Number	1377335-15KP30A
Ultra Librarian 3D Model	Ultra Librarian 15KP30A CAD Model

Alternative Products

Description

The 15KP30A is a Zener type transient voltage suppressor diode designed to protect electronic circuits from voltage spikes and transients.

Reverse Standoff Voltage: 30V
Breakdown Voltage: 33.51V
Clamping Voltage (10/1000µs): 50.7V
Peak Pulse Current: 297.8A
Power Rating: 15kW
Application: General Purpose
Package: P600 Axial
Mounting Type: Through Hole
Manufacturer: MDE Semiconductor Inc.
Series: 15KP
Status: Active
