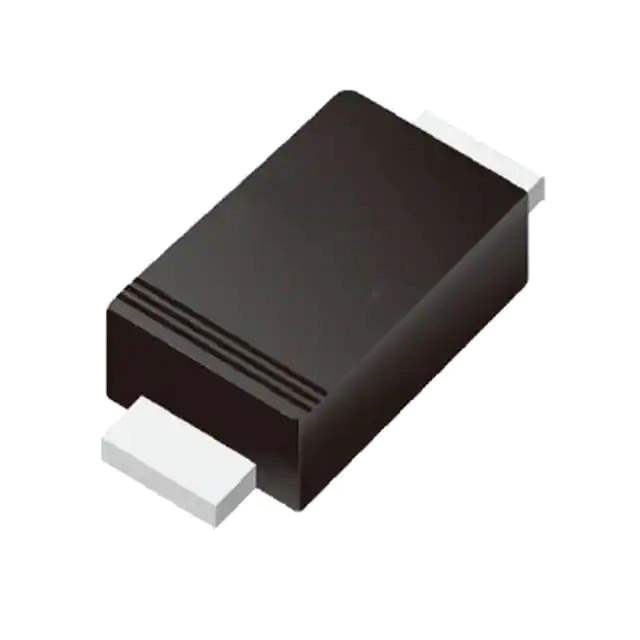

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr MDD
Series SOD-123FL
Package Tape & Reel
Product Status Active
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 60 V
Current - Average Rectified (Io) 2A
Voltage - Forward (Vf) (Max) @ If 700 mV @ 2 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 500 µA @ 60 V
Capacitance @ Vr, F 80pF @ 4V, 1MHz
Mounting Type Surface Mount
Package / Case SOD-123F
Supplier Device Package SOD-123FL
Operating Temperature - Junction -55°C ~ 125°C
Standard Package 6,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 587184-DSK26
Ultra Librarian 3D Model Ultra Librarian DSK26 CAD Model

Description

The DSK26 is a Schottky diode designed for rectification and switching applications.

  • Maximum Reverse Voltage Rating: 60V
  • Average Rectified Current: 2A
  • Forward Voltage Drop @ 2A: 700mV
  • Reverse Leakage Current @ Maximum Reverse Voltage: 500µA
  • Capacitance @ 4V and 1MHz: 80pF
  • Package: Surface mount SOD-123FL package
  • Operating Temperature Range: -55°C to 125°C
  • Status: Active product in the MDD series
  • REACH Regulations: Unaffected
