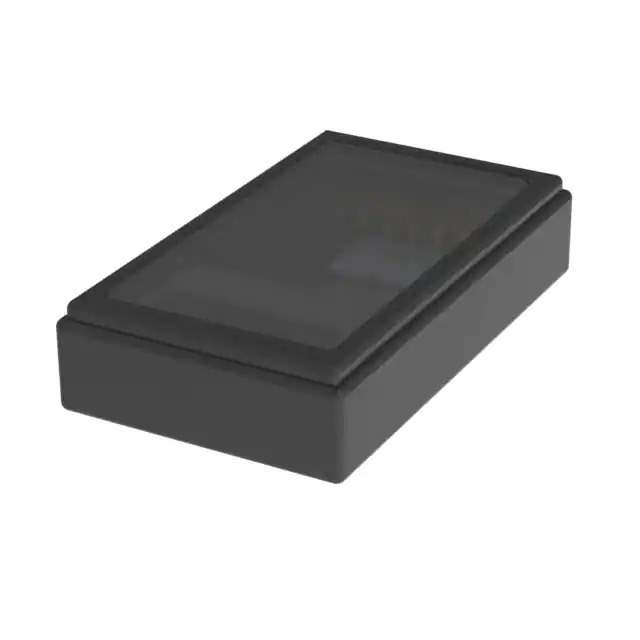

MAX86150EFF+

Part No MAX86150EFF+
Manufacturer Maxim Integrated
Catalog Specialized Sensors
Description 3RD GEN HIGH-ACCURACY PULSE OXIM / Oximeter/Heart Rate Sensor I2C Output
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Specialized Sensors
Mfr Maxim Integrated
Package Strip
Product Status Active
Sensor Type Oximeter/Heart Rate
Output Type I2C
Temperature Range - Operating -40°C ~ 85°C
Base Product Number MAX86150
Standard Package 5,000 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 847850-MAX86150EFF+
Ultra Librarian 3D Model Ultra Librarian MAX86150EFF+ CAD Model

Description

The MAX86150EFF+ is a state-of-the-art integrated biosensor module from Maxim Integrated, designed to deliver high-precision readings for both heart rate and blood oxygen saturation (SpO2) levels. This compact and power-efficient module is ideal for wearable health and fitness applications, providing reliable data for health monitoring and diagnostics.

Key Features

  • Integrated PPG and ECG Sensor: The MAX86150EFF+ combines a photoplethysmogram (PPG) sensor and an electrocardiogram (ECG) sensor in one package, enabling simultaneous recording of blood oxygen levels and heart electrical activity.
  • Low Power Consumption: Designed with power efficiency in mind, this module is perfect for battery-operated devices, ensuring longer usage periods between charges.
  • High Sensitivity: The optical sensor is highly sensitive, allowing for accurate measurements even with low signal levels, which is crucial for wearable devices that may encounter motion artifacts.
  • Compact Size: The small form factor of the MAX86150EFF+ makes it easy to integrate into portable devices without compromising on space or design.

Applications

The MAX86150EFF+ is suitable for a wide range of applications, particularly in the medical and fitness industries. It can be used in:

  • Smart watches and wristbands
  • Fitness trackers
  • Portable medical devices
  • Remote patient monitoring systems

Technical Specifications

The module operates over a -40°C to +85°C temperature range and requires a 1.8V power supply for the analog circuitry, while digital logic operates at 1.8V to 3.3V. It communicates with host devices via a standard I2C-compatible interface, making it easy to integrate with a wide array of microcontrollers and processors.

Conclusion

Overall, the MAX86150EFF+ from Maxim Integrated is a versatile and reliable solution for adding heart rate and SpO2 monitoring capabilities to any wearable device. Its combination of advanced features, low power consumption, and ease of integration make it an excellent choice for developers looking to enhance their health-related products.
