Product Overview: MAX4803ETN+ from Maxim Integrated

The MAX4803ETN+ is a high-performance, octal, high-voltage, serial-interface relay driver from Maxim Integrated, designed to offer a compact and efficient solution for driving up to eight relays. The device incorporates a built-in serial interface that reduces the number of digital GPIOs required from the host microcontroller, making it an ideal choice for space-constrained applications where board real estate is at a premium.

This innovative component operates with a supply voltage range of 2.5V to 5.5V, making it versatile for various systems and ensuring compatibility with most low-voltage logic interfaces. Additionally, the MAX4803ETN+ is capable of generating an open-circuit voltage up to 220V and a sustaining voltage up to 200V, which is suitable for driving a wide array of relay types.

One of the standout features of the MAX4803ETN+ is its built-in charge pump circuitry. This eliminates the need for external high-voltage supplies, as the device can generate the required relay voltage internally. Moreover, the charge pump requires only a few external components, further simplifying the design and reducing the overall bill of materials.

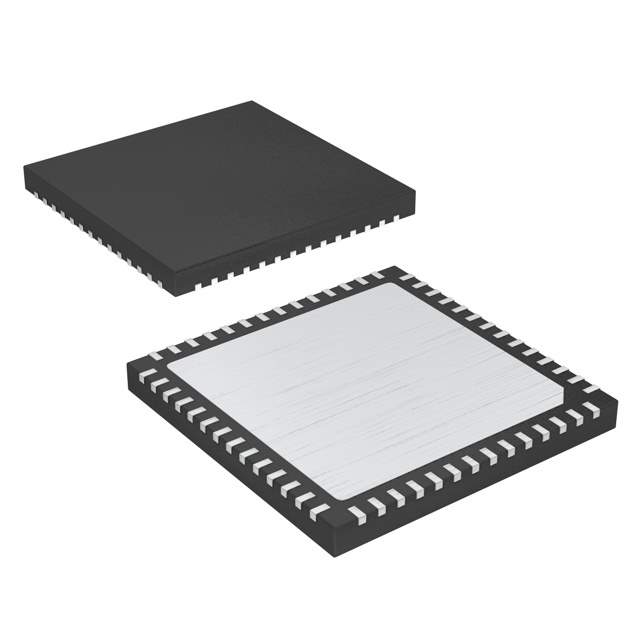

The MAX4803ETN+ comes in a compact 56-pin TQFN package with an exposed pad, providing excellent thermal performance and making it a practical choice for designs where space and thermal management are critical. The device also includes built-in thermal shutdown and current-limit features, enhancing system reliability and protecting against overcurrent conditions.

With its serial interface, the MAX4803ETN+ supports daisy-chaining of multiple devices, which allows for the expansion of relay channels without significant increases in control lines. This scalability is particularly useful in complex systems that require numerous relay drivers but have limited I/O availability.

In summary, the MAX4803ETN+ from Maxim Integrated is a robust and reliable solution for driving multiple high-voltage relays in a wide range of applications, including industrial controls, instrumentation, and automation systems. Its integration of a charge pump, thermal protection features, and serial interface make it a smart, space-saving choice for designers looking to optimize their relay control designs.
