Maxim Integrated's MAX4524EUB+T Analog Switch

The MAX4524EUB+T is a precision, dual analog switch from Maxim Integrated, renowned for its high-performance and reliability in various applications. This component is specifically designed to facilitate the routing of analog signals through its dual SPST (single-pole, single-throw) configuration, making it a versatile choice for a wide range of electronic circuits.

Constructed with Maxim's proprietary silicon-gate process, the MAX4524EUB+T offers low on-resistance (R_ON) of just 2.5Ω (max), which remains consistent over the full analog signal range and the operating power-supply range of ±4.5V to ±20V or +4.5V to +40V. Its low on-resistance is matched by its flatness (0.5Ω max), which is a critical parameter for maintaining signal integrity in precision applications.

The device's single-supply operation capability makes it a convenient choice for systems that require efficient power management, while its low power consumption contributes to energy savings. The MAX4524EUB+T also features fast switching speeds, with t_ON of 175ns and t_OFF of 145ns, thus ensuring swift response times in applications that demand quick signal routing changes.

Moreover, the MAX4524EUB+T is equipped with a digital logic input that is TTL and CMOS compatible, allowing for easy integration with a variety of digital controllers. Its ESD protection exceeds 2000V per Method 3015.7, offering robustness against electrostatic discharges, which is essential for maintaining reliability and longevity in harsh environments.

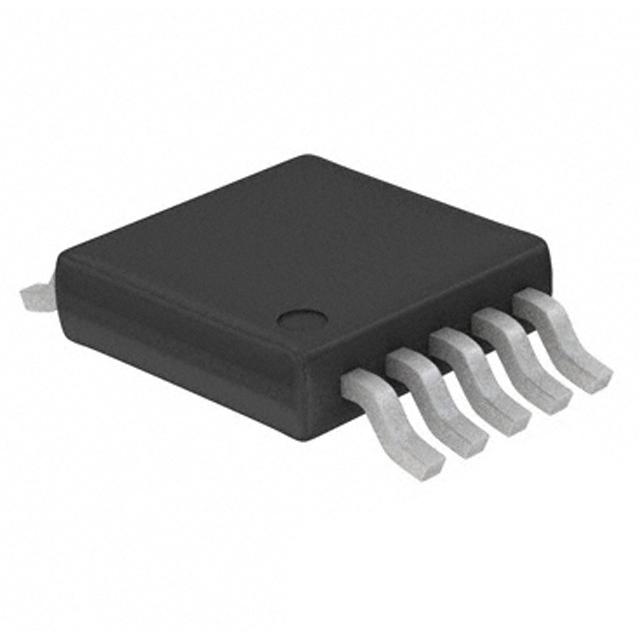

Maxim Integrated packages the MAX4524EUB+T in a compact µMAX-10 package, which is not only space-efficient but also ideal for applications where board space is at a premium. The device's extended temperature range of -40°C to +85°C ensures that it can operate reliably in both commercial and industrial settings.

With its exceptional performance characteristics and Maxim's commitment to quality, the MAX4524EUB+T analog switch is an excellent choice for designers looking to create efficient and precise electronic systems in fields such as telecommunications, data acquisition, and test equipment.
