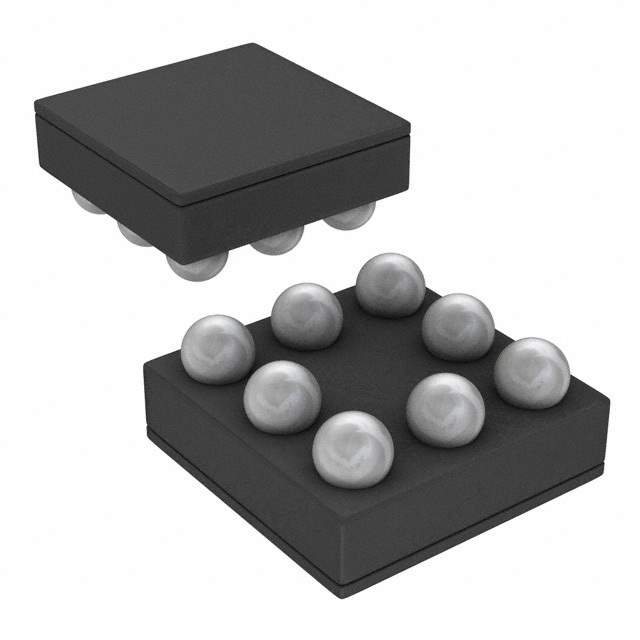

Maxim Integrated MAX4292EBL+ Precision Operational Amplifier

The MAX4292EBL+ from Maxim Integrated is a high-precision operational amplifier (op-amp) that offers an exceptional balance of performance and power efficiency. This device is part of Maxim's commitment to providing innovative analog and mixed-signal engineering solutions. The MAX4292EBL+ is designed to operate with a single supply voltage, making it an ideal choice for battery-powered devices and portable applications.

With its low input bias current, low quiescent current, and low voltage noise, the MAX4292EBL+ is perfectly suited for high-impedance sensor amplification, medical instrumentation, and precision data acquisition systems. Its rail-to-rail output capability ensures maximum dynamic range, which is crucial for analog-to-digital conversion and for driving analog inputs to their full extent.

Key Features:

• Supply Voltage: Operates from a single +2.7V to +5.5V supply.
• Low Input Offset Voltage: Ensures high accuracy in signal processing.
• Low Power Consumption: Ideal for portable and battery-operated devices with its low quiescent current.
• Rail-to-Rail Output: Provides increased dynamic range in applications.
• High Gain Bandwidth Product: This op-amp features a 1MHz gain bandwidth product for a wide range of frequencies.
• Temperature Range: Operates over the extended industrial temperature range (-40°C to +85°C).
• Package: Available in a space-saving 8-pin µMAX package.

The MAX4292EBL+ is also designed with protection features such as short-circuit and thermal overload protection, which ensure the longevity and reliability of both the op-amp and the overall application it is used in.

Whether you're designing a precision analog circuit for a new piece of consumer technology, or upgrading an existing industrial system, the MAX4292EBL+ offers a compelling mix of features that can help you achieve the performance and efficiency your project requires.

For detailed specifications, application circuits, and additional information, designers can refer to the comprehensive datasheet provided by Maxim Integrated.
