Maxim Integrated MAX3514EEP Cable Upstream Amplifier

The MAX3514EEP from Maxim Integrated is a sophisticated, high-performance, single-chip upstream amplifier designed for cable modem applications. This versatile component is engineered to provide optimal signal amplification in a compact and power-efficient package, making it an ideal solution for hybrid fiber-coaxial (HFC) networks and cable systems that require high-quality data transmission.

Featuring a frequency range of 5MHz to 65MHz, the MAX3514EEP is tailored for the upstream frequency bands used in DOCSIS (Data Over Cable Service Interface Specification) 1.x and 2.0, EuroDOCSIS, and Japanese cable systems. It is capable of delivering a high output level with excellent linearity, which is essential for maintaining the integrity of transmitted data in a cable network.

The device incorporates an adjustable gain control that allows for precise signal leveling, ensuring that the amplifier can adapt to various signal conditions and cable lengths. Additionally, the MAX3514EEP includes an integrated low-noise amplifier (LNA) that provides a low noise figure, further enhancing the quality of the upstream signal path.

One of the key features of the MAX3514EEP is its low power consumption, which makes it an environmentally friendly choice for cable operators looking to reduce energy costs and carbon footprint. It operates from a single +5V supply and includes power-saving modes that further reduce its power requirements when not in active use.

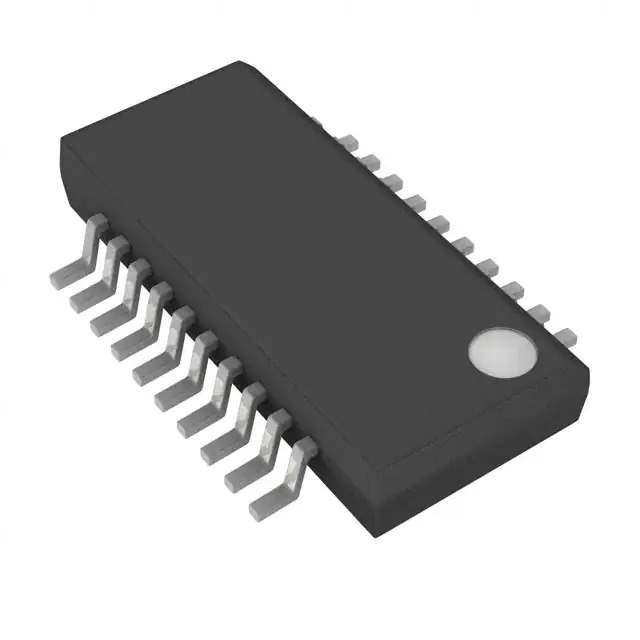

The MAX3514EEP comes in a space-saving 20-pin QSOP package, which allows for a smaller PCB footprint. This compact form factor, combined with its high integration level, reduces the need for external components and simplifies the design process, resulting in quicker time-to-market for cable modem manufacturers.

Overall, the MAX3514EEP from Maxim Integrated is a highly reliable and efficient solution for cable modem applications that demand high-quality signal amplification. Its robust design, coupled with advanced features, ensures that it meets the rigorous demands of today's high-speed data communication networks.
