Maxim Integrated MAX30101EFD+ Optical Sensor

The MAX30101EFD+ is a high-precision optical sensor module designed by Maxim Integrated for cutting-edge biometric applications. This sophisticated sensor is engineered to deliver accurate measurements of heart rate and blood oxygen saturation (SpO2) through the use of advanced photodetector technology.

At the heart of the MAX30101EFD+ lies a trio of LEDs: red, green, and infrared. These LEDs, in conjunction with a highly sensitive photodiode, enable the device to perform reflective photoplethysmography (PPG). This technique involves shining light into the skin and measuring the amount of light that is either absorbed or reflected back. The variations in light intensity are then translated into biometric information, providing valuable insights into cardiovascular health.

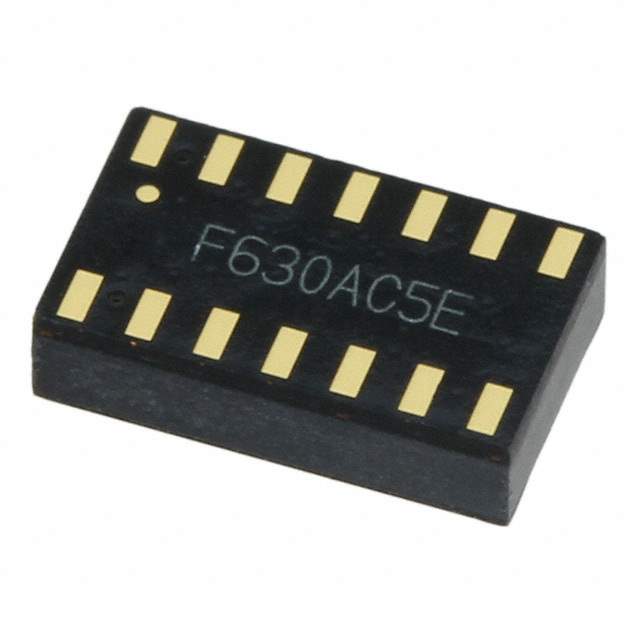

The module comes in a compact 14-pin surface-mount package, making it ideal for space-constrained applications such as wearable devices, fitness bands, and smartwatches. Its low power consumption ensures extended battery life in portable applications, while its integrated analog front-end (AFE) simplifies circuit design and accelerates time-to-market for product developers.

Key features of the MAX30101EFD+ include:

• Integrated red, green, and IR LEDs for multi-wavelength measurements
• High-resolution 18-bit ADC for precise data acquisition
• Programmable sample rate and LED pulse amplitude
• Advanced ambient light cancellation technology
• Temperature compensation for consistent performance
• I2C-compatible interface for easy integration with microcontrollers

With its robust design and advanced features, the MAX30101EFD+ is an excellent choice for developers seeking to incorporate reliable biometric sensing into their products. Whether it's for fitness tracking, health monitoring, or medical diagnostics, this optical sensor module offers a versatile and precise solution for a wide range of applications.
