Maxim Integrated MAX3006EUP+ Overview

The MAX3006EUP+ is a high-performance, low-power, voltage-level translator from Maxim Integrated, designed for bidirectional voltage translation between two logic levels. This versatile chip is ideal for applications that require the interfacing of devices operating at different voltage levels, such as connecting a 3.3V microcontroller to 5V peripherals or vice versa.

Key Features

• Wide Voltage Range: The MAX3006EUP+ supports voltage levels from 1.2V to 3.6V on the V_CCA side and 1.65V to 5.5V on the V_CCB side, making it highly adaptable for various digital logic levels.
• Flexible Bidirectional Interface: It can be used for bidirectional voltage translation without the need for direction control, simplifying the design and saving GPIO pins on microcontrollers.
• Low Quiescent Current: With a low quiescent current of less than 10µA, it is suitable for battery-powered and power-sensitive applications.
• High-Speed Operation: The device supports high-speed signal propagation with minimal signal delay, ensuring reliable and fast communication between components.

Applications

The MAX3006EUP+ is particularly useful in a variety of applications, including:

• Mobile Devices
• Portable Electronics
• Data Communication Systems
• Multivoltage Systems
• Level Shifting for SD Cards, SIM Cards, and other interfaces

Quality and Reliability

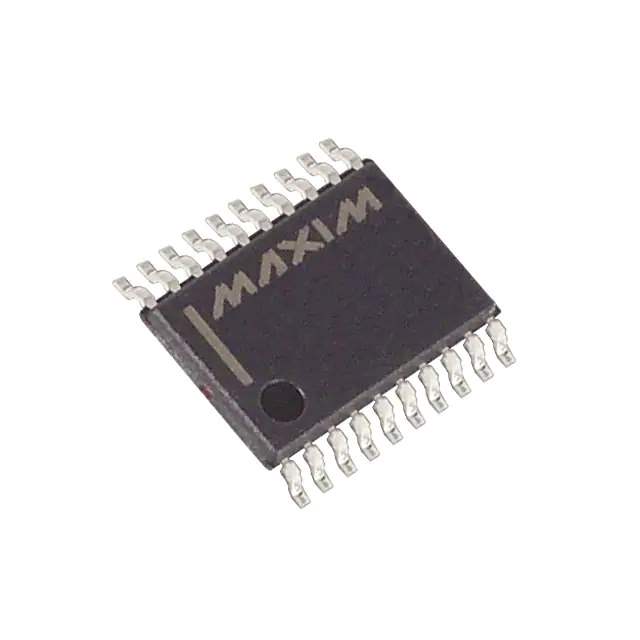

Maxim Integrated is known for its commitment to quality, and the MAX3006EUP+ is no exception. It is available in a space-saving 20-pin TSSOP package, which is both durable and suitable for compact PCB layouts. This level translator is designed to meet the stringent requirements of industrial temperature ranges, ensuring reliable operation under varying environmental conditions.

In summary, the MAX3006EUP+ from Maxim Integrated is a versatile and efficient solution for voltage translation in multi-voltage systems. Its wide voltage range compatibility, bidirectional interface, low power consumption, and high-speed operation make it an excellent choice for designers looking to bridge the gap between different logic levels in their electronic designs.
