Maxim Integrated MAX17501EATB+T DC-DC Converter

The MAX17501EATB+T is a high-efficiency, synchronous, step-down DC-DC converter module from Maxim Integrated, designed to provide a compact and reliable power solution for a wide range of applications. With its integrated MOSFETs and advanced control circuitry, this component delivers up to 3.5A of continuous output current with excellent load and line regulation.

The device operates over a wide input voltage range of 4.5V to 60V, making it suitable for diverse power systems, including industrial, automotive, and communication applications. The MAX17501EATB+T supports an adjustable output voltage from 0.9V up to 90% of the input voltage, allowing designers to tailor the output to meet specific requirements.

Featuring a high level of integration, the MAX17501EATB+T simplifies design and reduces external component count. Its internal compensation reduces the need for external components, which minimizes board space and helps to speed up the design process. The device's high switching frequency, which is selectable from 100kHz to 2.2MHz, further allows for the use of smaller, less costly inductors and capacitors, resulting in a compact power supply design.

The MAX17501EATB+T incorporates a range of protection features to ensure safe and reliable operation under various conditions. These include overcurrent protection, overtemperature protection, and undervoltage lockout (UVLO). Additionally, the device offers a programmable soft-start feature to minimize inrush current during startup, contributing to system stability.

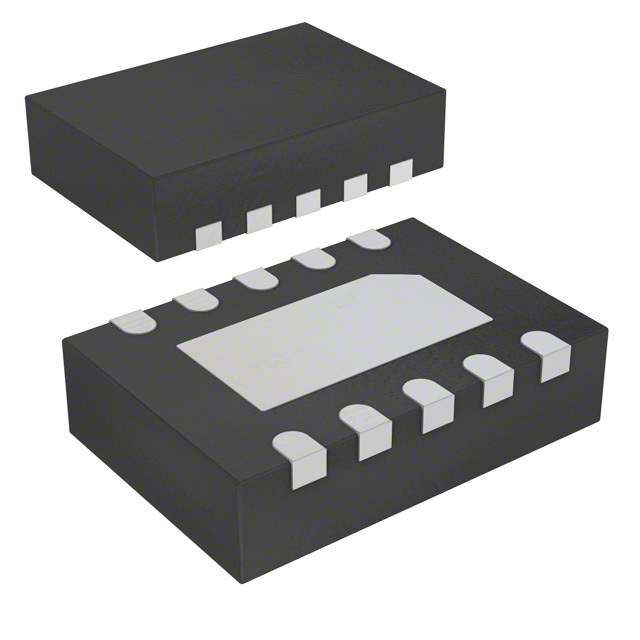

Available in a thermally efficient TDFN-EP package, the MAX17501EATB+T is designed for enhanced thermal performance and space-saving on the PCB. Its lead(Pb)-free and RoHS-compliant design demonstrates Maxim Integrated's commitment to environmental sustainability while providing a robust solution that meets the demands of modern electronic systems.

In summary, the MAX17501EATB+T from Maxim Integrated is a versatile and efficient solution for designers looking to implement a high-performance power management system with minimal external components and design complexity.
