The MAX15046BAEE from Maxim Integrated is a high-performance, synchronous buck converter designed to deliver efficient power conversion for a wide range of applications. This compact and versatile IC is capable of driving a 6A load with excellent power efficiency, making it an ideal solution for space-constrained environments.

Key Features

• Input Voltage Range: The device operates from a 4.5V to 28V input voltage range, accommodating various power supply requirements.
• Output Current: Capable of delivering up to 6A of continuous output current, it meets the needs of high-power applications.
• High Efficiency: Synchronous rectification ensures high efficiency, reducing power loss and improving system performance.
• Adjustable Output Voltage: The output voltage is adjustable from 0.6V to 90% of the input voltage, providing flexibility for different circuit designs.
• Integrated MOSFETs: Internal high-side and low-side MOSFETs minimize external component count and simplify the design process.
• Protection Features: It includes overcurrent protection, thermal shutdown, and undervoltage lockout to ensure safe operation under adverse conditions.
• Frequency Synchronization: The switching frequency can be synchronized to an external clock to reduce electromagnetic interference (EMI) and optimize the use of filtering components.

Applications

The MAX15046BAEE is suitable for a variety of applications, including but not limited to:

• Point-of-Load (POL) power supplies
• Networking and telecommunications equipment
• Industrial control systems
• Automotive applications
• FPGA and DSP power supplies

Package and Availability

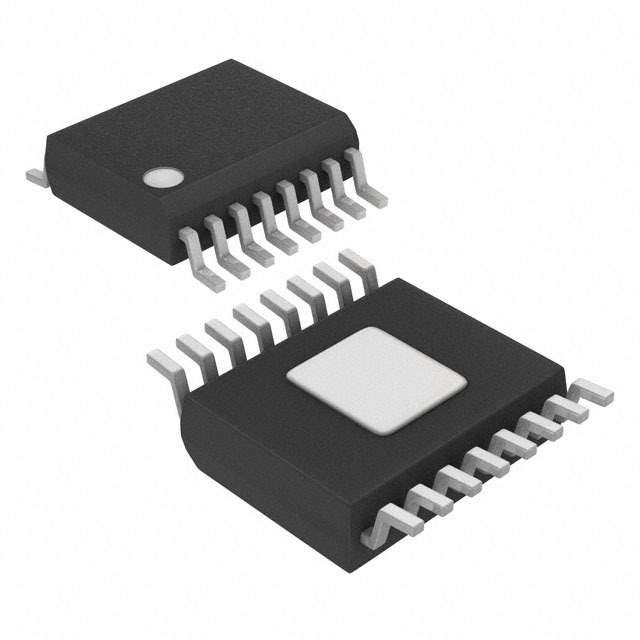

This IC is available in a 16-pin QSOP package, providing a compact solution for densely packed PCBs. The MAX15046BAEE's combination of efficiency, flexibility, and protection features make it a robust choice for designers looking for a reliable power management solution.
