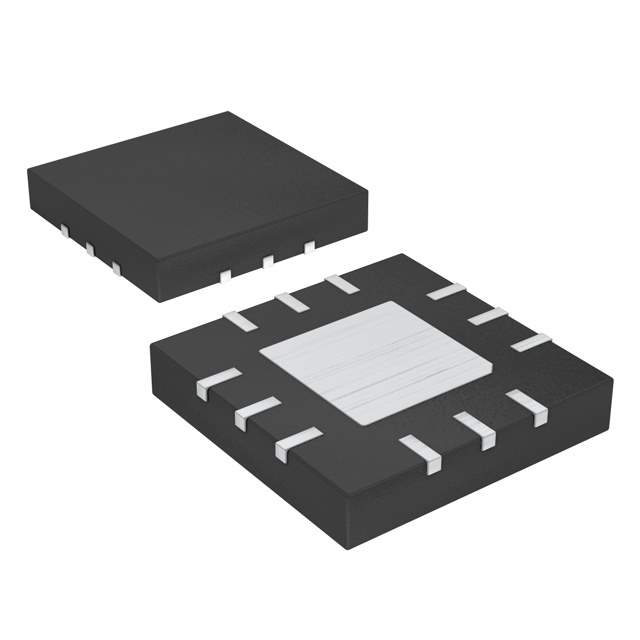

Maxim Integrated MAX1276ETC+ High-Speed ADC

The MAX1276ETC+ is a precision, high-speed, 12-bit analog-to-digital converter (ADC) from Maxim Integrated designed to deliver exceptional performance for a wide range of applications. This compact and efficient ADC is an ideal solution for systems that require fast and accurate digitalization of analog signals.

With its advanced design, the MAX1276ETC+ offers an impressive sampling rate of up to 2Msps (Mega-samples per second), enabling it to capture and convert high-frequency signals with minimal latency. This makes it particularly suitable for applications such as medical imaging, data acquisition systems, and digital signal processing where speed and accuracy are paramount.

The device operates from a single 5V power supply and features a fully differential input with a ±Vref input range, where Vref can range from 2.048V to 5.0V. This flexibility allows users to tailor the dynamic range of the converter to match the amplitude of the input signal, optimizing the ADC's performance for specific applications.

One of the key attributes of the MAX1276ETC+ is its low power consumption, which is critical for portable and battery-powered devices. Despite its high-speed capabilities, the ADC maintains power efficiency, ensuring longer operational times for such devices.

The MAX1276ETC+ also includes an internal 4.096V voltage reference and a reference buffer, simplifying the design and reducing the number of external components required. This integration contributes to a reduced system footprint and lower overall system costs.

Communication with the MAX1276ETC+ is facilitated through a SPI/QSPI/MICROWIRE-compatible serial interface, which allows for easy integration with most microcontrollers and digital systems. The device is housed in a compact 12-pin TDFN package, ensuring it occupies minimal space on a printed circuit board.

In summary, the Maxim Integrated MAX1276ETC+ ADC offers a compelling combination of high-speed performance, precision, low power consumption, and ease of use, making it an excellent choice for designers looking to enhance the capabilities of their data acquisition and signal processing systems.
