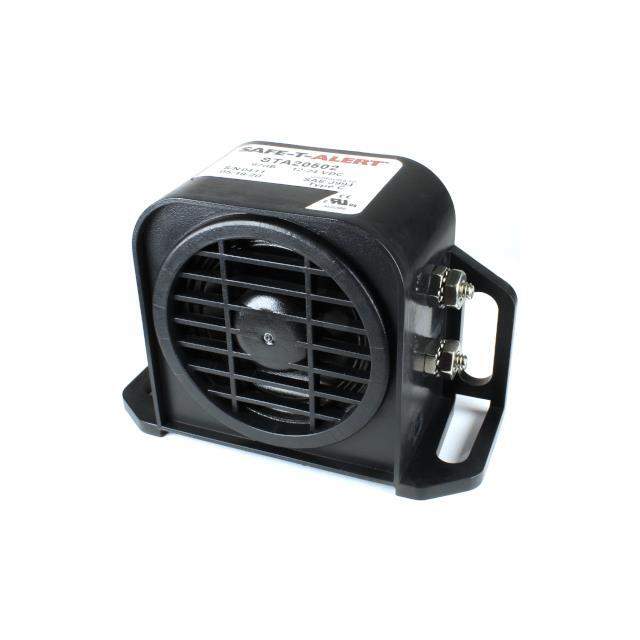

STA20302 Real Image
Same model may have multiple batches, images only for reference.

STA20302

Part No STA20302
Manufacturer Mallory Sonalert Products Inc.
Catalog Alarms, Buzzers, and Sirens
Description AUDIO PIEZO IND 12-24V CHASSIS
Datasheet
STA20302 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Audio Products
Manufacturer Mallory Sonalert Products Inc.
Packaging Bulk
Status Active
Driver Circuitry Indicator, Internally Driven
Input Type DC
Voltage Range 12 to 24V
Frequency 1.25kHz
Technology Piezo
Operating Mode Pulse, Slow
Sound Pressure Level (SPL) 87dB @ 12V, 122cm
Operating Supply Current 600mA
Port Location User Defined
Temperature Range - Operating -40°C to 85°C
Approvals CE, UL
Mounting Bracket Mount
Termination Screw Terminals
Height - Seated (Max) 2.717" (69.00mm)
Win Source Part Number 1011063-STA20302
Popularity Medium
Supply and Demand Status Balance
Quantity per package 1
Ultra Librarian 3D Model Ultra Librarian STA20302 CAD Model

Description

The Mallory Sonalert Products Inc. 1011063-STA20302 is a piezo audio product that operates on a DC input.

  • Frequency: 1.25kHz
  • Sound Pressure Level (SPL): 87dB @ 12V and 122cm
  • Approvals: CE and UL
  • Operating Temperature: -40°C to 85°C
  • Features: Indicator and Internally Driven Driver Circuitry
  • Supply and Demand: Balance
