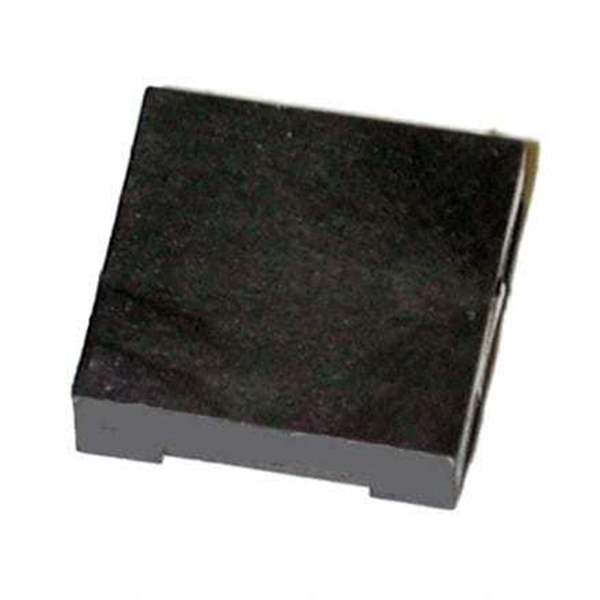

AST1240MLTRQ Mallory Sonalert Products Inc.
Same model may have multiple batches, images only for reference.

AST1240MLTRQ

Part No AST1240MLTRQ
Manufacturer Mallory Sonalert Products Inc.
Catalog Alarms, Buzzers, and Sirens
Description BUZZER PIEZO 3V 12X12MM SMD / Buzzers Transducer, Externally Driven Piezo 3 V 5mA 4kHz 75dB @ 3V, 10cm Surface Mount Solder Pads
Datasheet
AST1240MLTRQ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Audio Products - Alarms, Buzzers, and Sirens
Mfr Mallory Sonalert Products Inc.
Series AST
Package Tape & Reel
Product Status Active
Driver Circuitry Transducer, Externally Driven
Input Type Peak-Peak Signal
Voltage - Rated 3 V
Voltage Range 3 ~ 25V
Frequency 4kHz
Technology Piezo
Operating Mode Single Tone
Duration -
Sound Pressure Level (SPL) 75dB @ 3V, 10cm
Current - Supply 5mA
Port Location Side
Temperature Range - Operating -20°C ~ 70°C
Approval Agency -
Ratings -
Mounting Type Surface Mount
Termination Solder Pads
Size / Dimension 0.472" L x 0.472" W (12.00mm x 12.00mm)
Height - Seated (Max) 0.130" (3.30mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8531.80.9041
Win Source Part Number 1355608-AST1240MLTRQ
Ultra Librarian 3D Model Ultra Librarian AST1240MLTRQ CAD Model

Description

The Mallory Sonalert Products Inc. AST series is an audio alarm buzzer with a frequency of 4kHz.

  • Frequency: 4kHz
  • Rated Voltage: 3V
  • Temperature Range: -20°C to 70°C
  • Technology: Piezo
  • Mounting Type: Surface Mount
  • Dimensions: 0.472" L x 0.472" W (12.00mm x 12.00mm)
  • Height (Seated): 0.130" (3.30mm)
  • Current Supply: 5mA
  • Voltage Range: 3V to 25V
