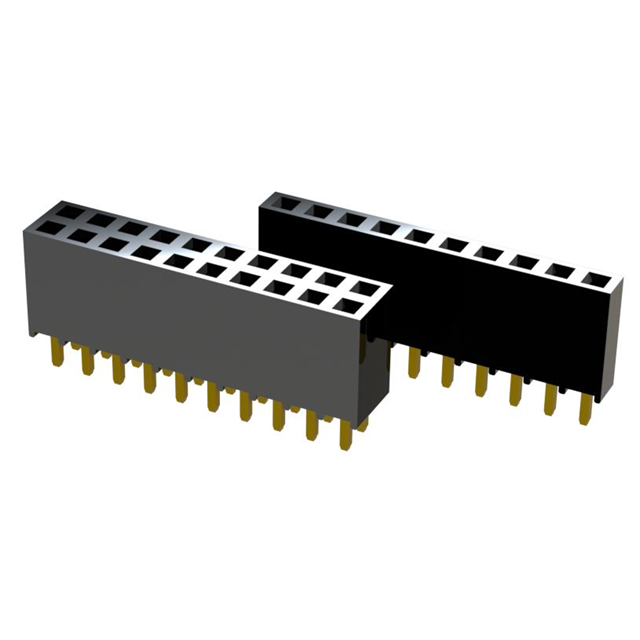

Same model may have multiple batches, images only for reference.

SSHQ-123-D-08-GT-LF

Name: SSHQ-123-D-08-GT-LF
Brand: Major League Electronics
SKU: 1350004
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	SSHQ-123-D-08-GT-LF
Manufacturer	Major League Electronics
Catalog	Rectangular Connectors
Description	.100 Socket / 46 Position Socket Connector 0.100" (2.54mm) Through Hole Gold
Datasheet	SSHQ-123-D-08-GT-LF Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Major League Electronics
Series	SSHQ-1
Package	Bag
Connector Type	Socket
Contact Type	Forked
Style	Board to Board
Number of Positions	46
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Insulation Color	Black
Insulation Height	0.334" (8.48mm)
Contact Length - Post	0.390" (9.91mm)
Temperature Range - Operating	-40°C ~ 105°C
Contact Finish - Post	Tin
Current Rating (Amps)	3A
Insulation Material	Polyamide (PA6T) , Nylon 6T
Contact Shape	Square
Contact Material	Phosphor Bronze
Standard Package	1
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
Win Source Part Number	1350004-SSHQ-123-D-08-GT-LF
Ultra Librarian 3D Model	Ultra Librarian SSHQ-123-D-08-GT-LF CAD Model

Alternative Products

Description

The SSHQ-1 series female socket connector is a through-hole, board-to-board connector that is designed for use in electronic circuits.

Pitch: 0.100" (2.54mm)
Number of Positions: 46
Contact Finish: Gold
Operating Temperature: -40°C ~ 105°C
