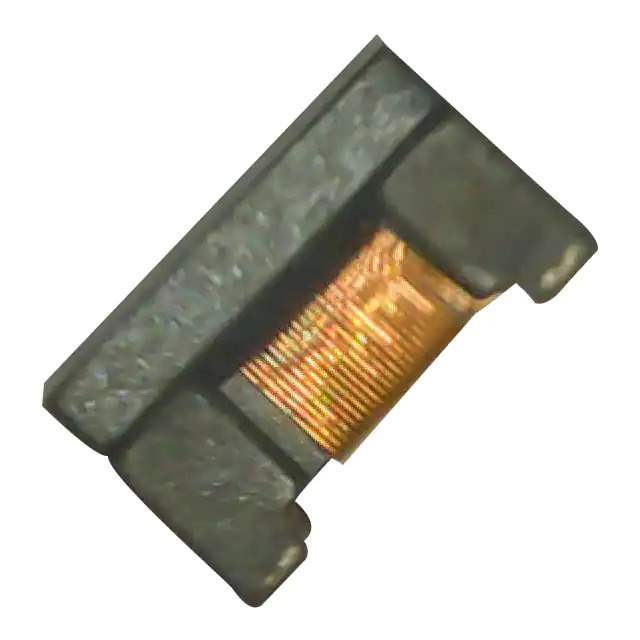

Same model may have multiple batches, images only for reference.

MCI-2012-181-RU

Get a Quote

Part No	MCI-2012-181-RU
Manufacturer	Mag Layers
Catalog	Common Mode Chokes
Description	CMC 330MA 2LN 180 OHM SMD / 2 Line Common Mode Choke Surface Mount 180 Ohms @ 100 MHz 330mA DCR 350mOhm
Datasheet	MCI-2012-181-RU Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Filters - Common Mode Chokes
Mfr	Mag Layers
Series	MCI-2012
Package	Tape & Reel
Product Status	Active
Filter Type	Power Line
Number of Lines	2
Impedance @ Frequency	180 Ohms @ 100 MHz
Current Rating (Max)	330mA
DC Resistance (DCR) (Max)	350mOhm
Voltage Rating - DC	50V
Temperature Range - Operating	-25°C ~ 85°C
Mounting Type	Surface Mount
Size / Dimension	0.079" L x 0.047" W (2.00mm x 1.20mm)
Height (Max)	0.055" (1.40mm)
Package / Case	Horizontal, 4 PC Pad
Standard Package	10 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH info available upon request
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	926522-MCI-2012-181-RU
Ultra Librarian 3D Model	Ultra Librarian MCI-2012-181-RU CAD Model

Alternative Products

Description

The 926522-MCI-2012-181-RU is a common mode choke filter manufactured by Mag Layers.

Series: MCI-2012
Package: Tape & Reel
Application: Power Line
Voltage Rating: 50V DC
Size/Dimension: 0.079" L x 0.047" W (2.00mm x 1.20mm)
Maximum Height: 0.055" (1.40mm)
Current Rating: 330mA
Standard Package: 10 pieces
Impedance @ Frequency: 180 Ohms @ 100 MHz
Mounting: Surface Mount
Temperature Range: -25°C to 85°C
ECCN: EAR99
Status: Active
