Same model may have multiple batches, images only for reference.

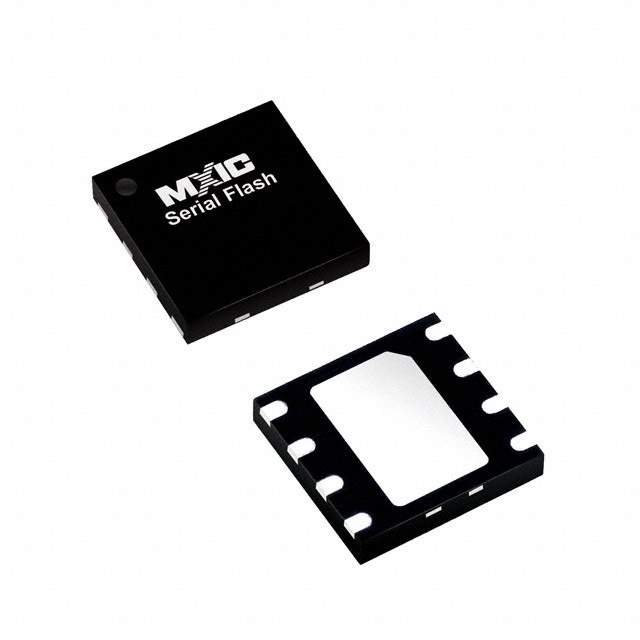

MX25U8035EZUI-10G Real Image
Same model may have multiple batches, images only for reference.

MX25U8035EZUI-10G

Part No MX25U8035EZUI-10G
Manufacturer Macronix
Catalog Unclassified Memory
Description DATASHEET
Datasheet
MX25U8035EZUI-10G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Macronix
Series MX25xxx35/36 - MXSMIO
Packaging Tray
Memory Type Non-Volatile
Memory Format FLASH
Technology FLASH - NOR
Memory Size 8Mb (1M x 8)
Clock Frequency 104MHz
Write Cycle Time - Word, Page 30μs, 3ms
Memory Interface SPI
Operating Supply Voltage 1.65 V ~ 2 V
Operating Temperature Range -40°C ~ 85°C (TA)
Mounting SMD
Package 8-UDFN Exposed Pad
Manufacturer Package 8-USON (4x4)
Win Source Part Number 1228796-MX25U8035EZUI-10G
Manufacturer Homepage www.macronix.com
Popularity Medium
Supply and Demand Status Balance
Family Name MX25U8035E
Introduction Date July 05, 2010
ECCN EAR99
Country of Origin Taiwan
Estimated EOL Date 2023
Quantity per package 490
Ultra Librarian 3D Model Ultra Librarian MX25U8035EZUI-10G CAD Model

Description

The Macronix MX25U8035EZUI-10G is a FLASH - NOR memory IC with a memory size of 8Mb (1M x 8).

  • Operating Supply Voltage: 1.65V to 2V
  • Clock Frequency: 104MHz
  • Memory Interface: SPI
  • Write Cycle Time: 30μs per word, 3ms per page
  • Package: 8-UDFN exposed pad
  • Mounting Type: Surface Mount
  • Series: MX25xxx35/36 - MXSMIO
  • Popularity: Medium
  • ECCN: EAR99
  • Country of Origin: Taiwan
