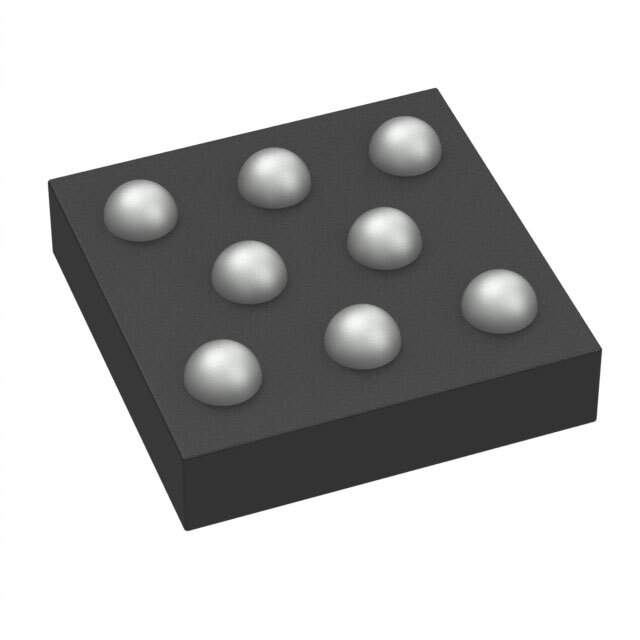

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Features FLASH - NOR Memory IC 8Mb (1M x 8) SPI - Quad I/O 33 MHz 8-WLCSP
Manufacturer Macronix
Series MXSMIO™
Package Reel - TR
Part Status Not For New Designs
Operating Temperature Range -40°C ~ 85°C (TA)
Mounting Surface Mount
Package 8-UFBGA, WLCSP
Case / Package 8-WLCSP
Family Name MX25R8035
REACH Status REACH Unaffected
ECCN 3A991B1B1
HTSUS 8542.32.0071
Quantity per package 6000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 928561-MX25R8035FBDIL0
Ultra Librarian 3D Model Ultra Librarian MX25R8035FBDIL0 CAD Model

Description

The Macronix MX25R8035FBDIL0 is a NOR Flash memory IC with a capacity of 8Mb (1M x 8).

  • Operating Mode: SPI Quad I/O
  • Frequency Maximum: 33 MHz
  • Mounting Type: surface mountable
  • Package: 8-UFBGA, WLCSP
  • Series: MXSMIO™
  • Popularity: high popularity
  • Category: Integrated Circuits (ICs)
  • Part Status: not for new designs
  • Quantity Per Package: 6000
  • Packaging: reel
  • REACH: REACH unaffected
  • ECCN: 3A991B1B1
  • HTSUS: 8542.32.0071
