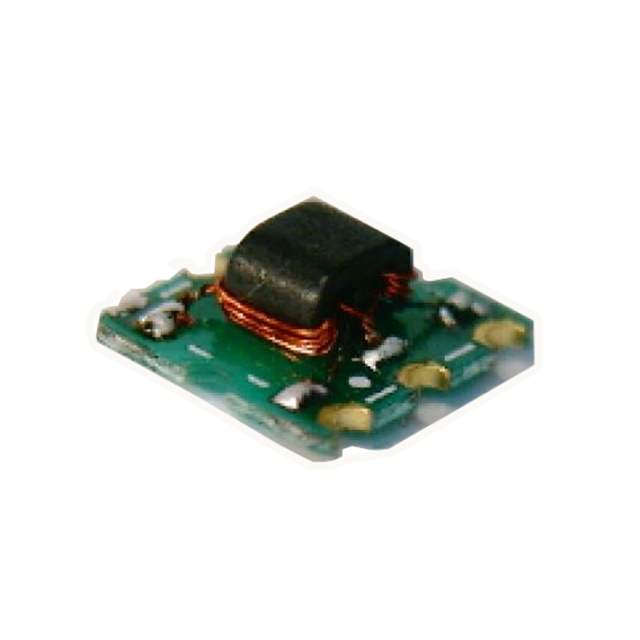

MACP-008311-CE0370 Real Image
Same model may have multiple batches, images only for reference.

MACP-008311-CE0370

Part No MACP-008311-CE0370
Manufacturer M/A-Com Technology Solutions
Catalog RF Directional Coupler
Description COUPLER, 14 DB, 5-1000MHZ / RF Directional Coupler General Purpose 5MHz ~ 1GHz 14.3dB 250mW SM-55
Datasheet
MACP-008311-CE0370 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Directional Coupler
Mfr MACOM Technology Solutions
Package Tape & Reel
Coupler Type Standard
Frequency 5MHz ~ 1GHz
Coupling Factor 14.3dB
Applications General Purpose
Power - Max 250mW
Return Loss 23dB
Package / Case SM-55
Supplier Device Package SM-55
Base Product Number MACP-008311
ECCN EAR99
HTSUS 8543.70.9860
Other Names 1465-MACP-008311-CE0370DKR,1465-MACP-008311-CE0370CT,1465-MACP-008311-CE0370TR
Standard Package 900
Win Source Part Number 1143266-MACP-008311-CE0370
Ultra Librarian 3D Model Ultra Librarian MACP-008311-CE0370 CAD Model

Description

The MACOM Technology Solutions RF directional coupler is a high-performance coupler that operates in the frequency range of 5MHz to 1GHz.

  • Frequency Range: 5MHz to 1GHz
  • Coupling Factor: 14.3dB
  • Return Loss: 23dB
  • Coupler Type: Standard
  • Package: Tape and Reel
  • Power Rating: 250mW
  • Standard Package: 900 units
  • Package/Case: SM-55
  • Supplier: MACOM Technology Solutions
