Same model may have multiple batches, images only for reference.

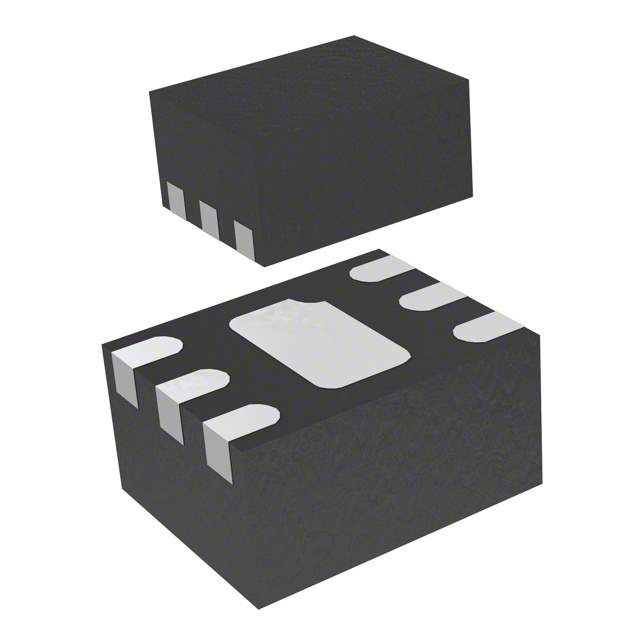

MAAM-011101-TR1000 Real Image
Same model may have multiple batches, images only for reference.

MAAM-011101-TR1000

Part No MAAM-011101-TR1000
Manufacturer M/A-Com Technology Solutions
Catalog RF Amplifiers
Description Ultra small Broadband General Purpose Amplifier | IC RF AMP GP 4GHZ-20GHZ 6DFN
Datasheet
MAAM-011101-TR1000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer M/A-Com Technology Solutions
Packaging Reel
Frequency 4GHz ~ 20GHz
P1dB 18dBm
Gain 16dB
Noise Figure 4dB
RF Type General Purpose
Supply Voltage (V) 5V ~ 12V
Supply Current 45mA
Manufacturer Package 6-WFDFN Exposed Pad
Supplier Device Package 6-TDFN (1.5x1.2)
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1211541-MAAM-011101-TR1000
Manufacturer Homepage www.macomtech.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian MAAM-011101-TR1000 CAD Model

Description

The MAAM-011101-TR1000 is a general-purpose RF amplifier designed for use in a variety of applications from M/A-Com Technology Solutions.

  • Frequency Range: 4GHz to 20GHz
  • Gain: 16dB
  • Supply Current: 45mA
  • Noise Figure: 4dB
  • P1dB: 18dBm
  • RF Type: General Purpose
  • Package: 6-TDFN (1.5x1.2) with exposed pad
  • Supply and Demand Status: Limited
  • Manufacturer Pack Quantity: 1
  • MSL Level: 1 (Unlimited)
  • Supply Voltage Range: 5V to 12V
