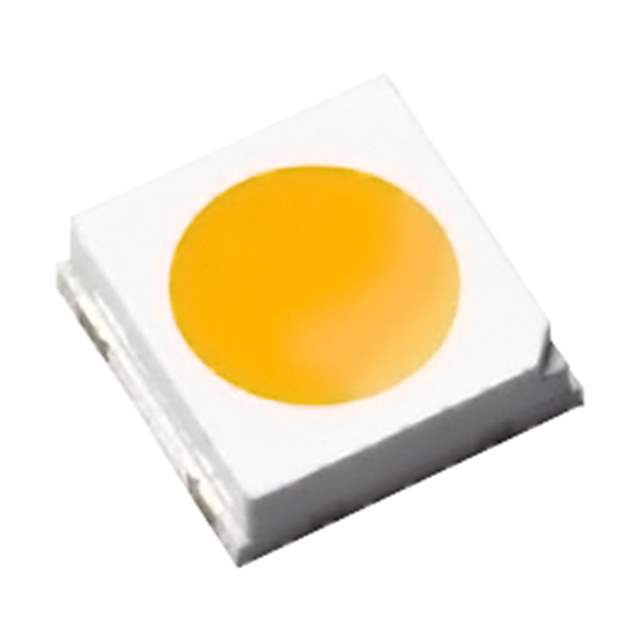

MXC9-PW27-0000 Real Image
Same model may have multiple batches, images only for reference.

MXC9-PW27-0000

Part No MXC9-PW27-0000
Manufacturer Lumileds
Catalog LED Lighting - White
Description LED LUXEON WARM WHITE 2700K 2SMD / LED Lighting series White, Warm 2700K 6.1V 100mA 115° 1414 (3535 Metric)
Datasheet
MXC9-PW27-0000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - White
Mfr Lumileds
Series LUXEON 3535 2D
Package Tape & Reel
Product Status Obsolete
Color White, Warm
CCT (K) 2700K
Flux @ 25°C, Current - Test 61lm (Typ)
Current - Test 100mA
Voltage - Forward (Vf) (Typ) 6.1V
Lumens/Watt @ Current - Test 100 lm/W
CRI (Color Rendering Index) 90
Current - Max 200mA
Viewing Angle 115°
Mounting SMD (SMT)
Package / Case 1414 (3535 Metric)
Supplier Device Package 3535
Dimension 0.138" L x 0.134" W (3.50mm x 3.40mm)
Height - Seated (Max) 0.035" (0.90mm)
Thermal Resistance of Package 18°C/W
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names 1416-1242-1,1416-1242-2,1416-1242-6
Standard Package 5,000
Win Source Part Number 1078320-MXC9-PW27-0000
Ultra Librarian 3D Model Ultra Librarian MXC9-PW27-0000 CAD Model

Description

The Lumileds LUXEON 3535 2D 1078320-MXC9-PW27-0000 is a white and warm LED lighting component with a viewing angle of 115 degrees.

  • Forward Voltage: 6.1V
  • Thermal Resistance: 18 degrees Celsius per watt
  • CCT: 2700K
  • CRI: 90
